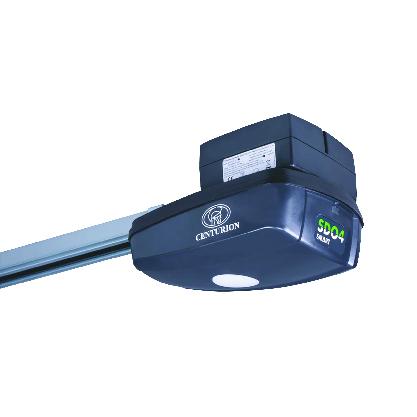

CENTURION SDO4 SMART Garage Door Motor

Code: T12SMART

Category: Gate Operator

Description:

Technical Specifications:

• T12
• Input voltage 230V AC +/-10% @ 50/60Hz
• Motor voltage 24V DC
• Motor power supply – rated 100W DC
• Motor supply Battery supply 2 x 3.4Ah 12V DC
• Maximum door width 6.5 metres
• Maximum door area 15 Square meters
• Maximum push/pull force 50kgf
• Maximum lifting capacity 1200N
• Operations in standby mode Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries
• Maximum operator travel speed3 9m/min
• Door travel adjustment Physical end-stops (Automatic limit set)
• Safety obstruction force system Built-in menu
• Light LED 2W
• Autoclose 2 Menu Selectable
• Infrared safety beams Menu Selectable (Optional but recommended)
• Onboard receiver type Code-hopping single channel
• Receiver code storage capacity 20x 4-Button Transmitters
• Receiver frequency 433.92Mhz
• Degree of protection IPX0 (For interior use only)
