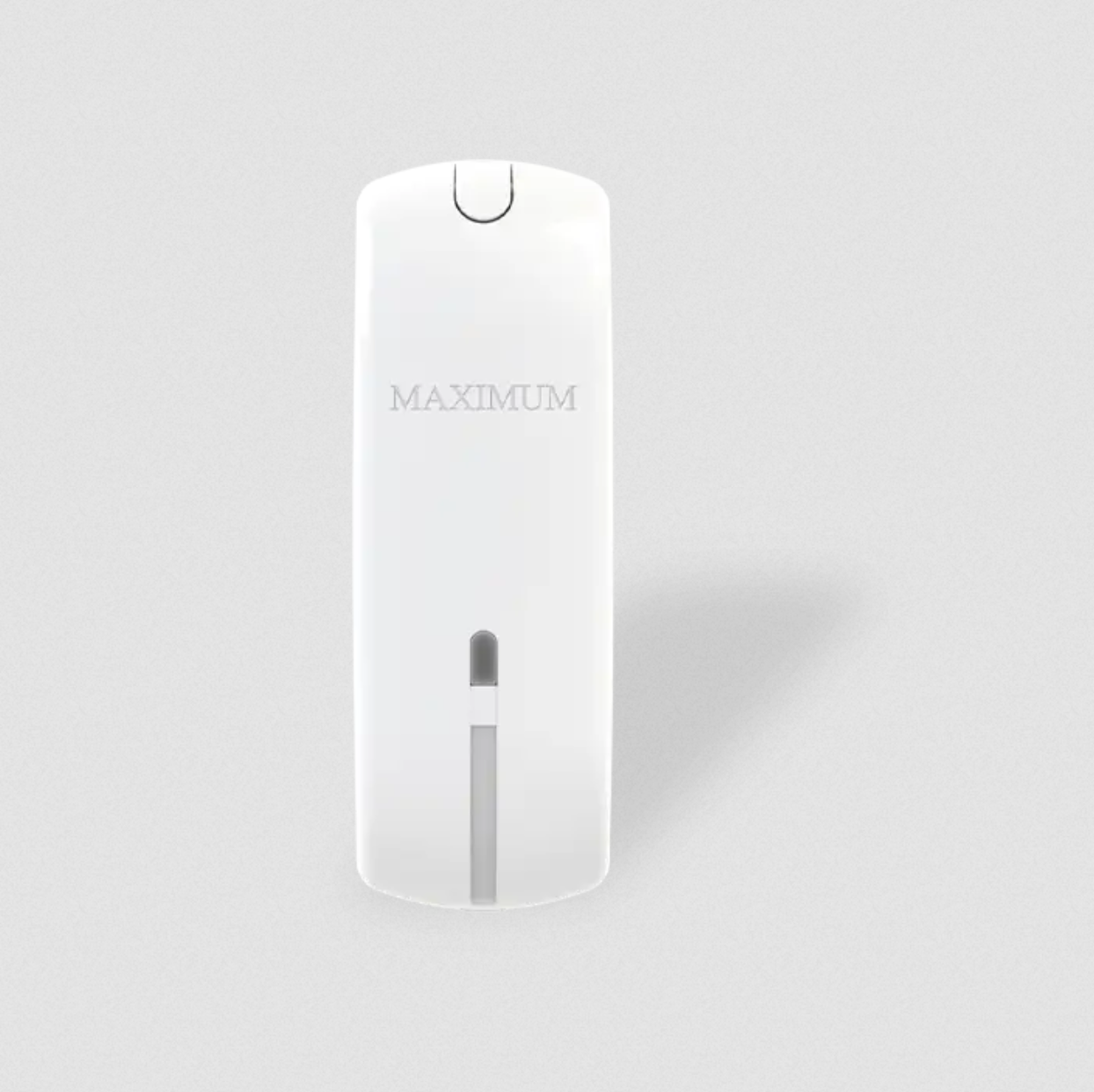

The EX-M4-CRT-PRO is an advanced miniature wireless curtain detector engineered to elevate your indoor security. Designed to protect high-risk entry points such as windows and doors, it creates a precise 6° narrow protective shield—like an invisible curtain—that secures openings against intruders. This professional device integrates Dual-Technology, combining traditional PIR detection with microwave capabilities for enhanced accuracy and rapid response. Its state-of-the-art Active IR Anti-masking feature ensures that any attempt to obstruct the sensor’s field is promptly detected, preserving the integrity of your security perimeter.
- 6° Narrow Protective Screen: Creates a super narrow beam for precise boundary control.
- Dual Detection Technology: Combined PIR and 24.125GHz Microwave for superior accuracy.
- Active IR Anti-Masking: Continuous monitoring by active infrared beams to detect sabotage.
- Adjustable PIR Sensitivity: Fine-tune detection levels to match the specific indoor environment.
- Auto Temperature Compensation: Automatically maintains sensitivity in fluctuating temperatures.
- Automatic Adaptation: Smart background noise filtration for maximum stability.
- Compact Pro Housing: Miniature aesthetics (75 x 25 x 28 mm) for discreet installation.
- High-Security Residential: Protecting internal glass entries and large windows.
- Commercial Vulnerable Areas: Securing entry points in banks, luxury retail, and server rooms.
- Intelligent Perimeter: Creating an invisible barrier while allowing free movement inside the room.
| Sensing Element |
PIR + Microwave + Active IR |
| Microwave Frequency |
24.125 GHz |
| Detection Distance |
Up to 10 m |
| Beam Angle |
6° Narrow Curtain |
| Anti-masking |
Active Infrared Beams |
| Operating Temperature |
-10°C to +40°C |
| Dimensions |
75 x 25 x 28 mm |
