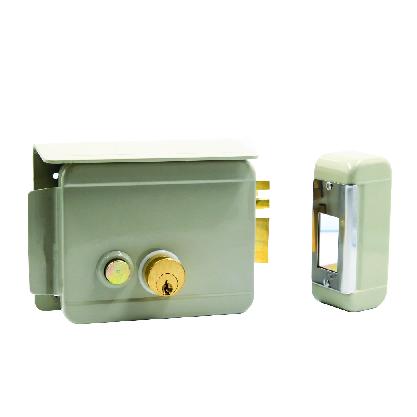

Elock, RL200 – Electric Rim Lock

EL-RL200 Electric Rim Lock (12V) supports electrical control or key
operation. It has functions of high guard and high security, e.g. protect nonkey’s unlock after message feedback. Fits for building intercom or access
control systems. Could be mounted in residential building, commercial
housing, hotel, warehouse, organ, school, etc.

The RL200 Electric Rim Lock is a fail-secure locking solution designed for secure entry control in warehouses, small shops, and locations where mortise locks cannot be installed. With a holding force of 440 lbs (200kg), it operates on DC12V with a low current draw of 190mA and is suitable for dry indoor environments (IP40 rating).

This model is unmonitored (no door signal or lock signal) and has no time delay, ensuring immediate locking when power is off. It is compatible with metal or wooden doors and provides reliable security where a surface-mounted lock is required.

• Holding Force: 440 lbs (200kg)
• Power Supply : DC12V
• Current Draw: 1500mA to 3000mA
• Door Status Sensor: No
• Door Signal: No (Unmonitored)
• Time Delay : No
• IP Rating: IP 65 (Weatherproof)
• Material: “Lock Body Iron, Cylinder & Latches Copper, Surface Spray Coating”
• Security Type: Fail Secure
• Working Temperature: -40 °C to 50 °C
• Weight: 2.1kg (4.6lbs)
• Dimension: 165 (L) x 55 (W) x 106 (H)
• Available In: Right & Left

Code: RL200

Category: Accessories

Subcategory: Lock

Brand: E-Lock
