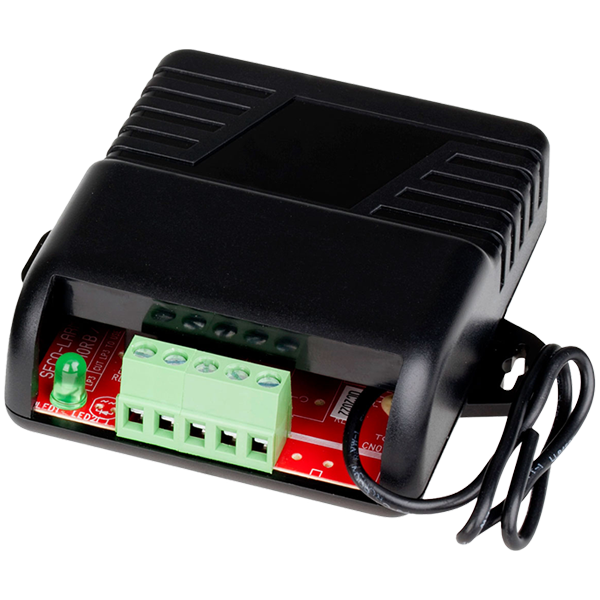

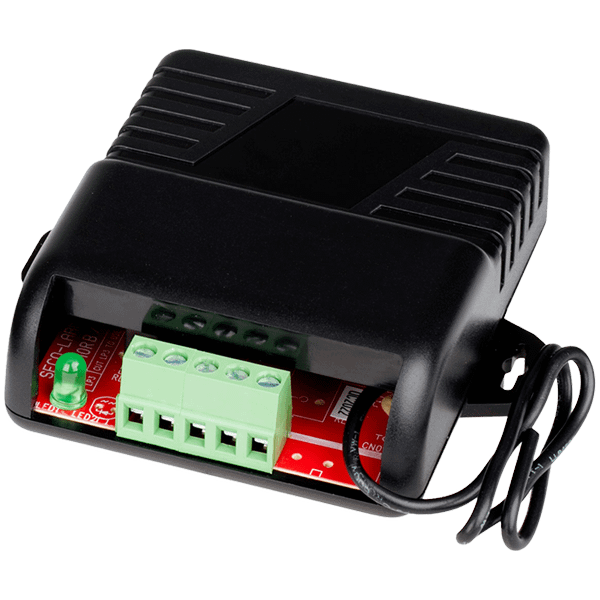

Enforcer, SK-910RQ RF Receiver

• Five programmable relay output modes:
  • 4-Second momentary
  • 1-Second momentary
  • Toggle (ON/OFF)
  • Validity
  • Latch
• 11~24 VAC/VDC Operation
• Range: Up to 500ft (150m)*
• Controls garage doors, gates, house lights, alarm panels or other devices via remote
• LED indicates RF reception, learn mode entered, transmitter learned, memory cleared, and relay output mode
• Pushbutton programming, no need to cut jumpers
• Up to 15 transmitter button codes can be learned

The SK-910RBQ series of wireless receivers meet the growing demand for receivers with multiple, independently-controlled output functions. These RF receivers are compatible with both code hopping and fixed code transmitters. The receivers can be used to remotely control a variety of home automation devices such as garage door openers, lights, motorized gates, lifts, or other devices.

Code: SK-910RQ RF

Category: Accessories

Subcategory: Wireless Remote

Brand: Enforcer

Description:

Specifications:
Type: WIRELESS – Single-Channel RF Receiver
Operating voltage: 11~24 VAC/VDC
Range: Up to 500′ (150m) with SECO-LARM transmitter. Range will vary.
Relay Rating: Form C dry relay contact (NO/NC/COM); max 10 Amp at 24VDC per channel
Current Draw: 8mA@12VDC (standby), 30mA/channel @12VDC (activated)
Extended Range Antenna Compatible: Yes (SK-91ERSD)
Connectors: 5 Quick-connect screw terminals (+, -, with NO/NC/COM)
Dimensions: 3-1/8″ x 2-9/16″ x 1″ (80 x 65 x 25 mm)
