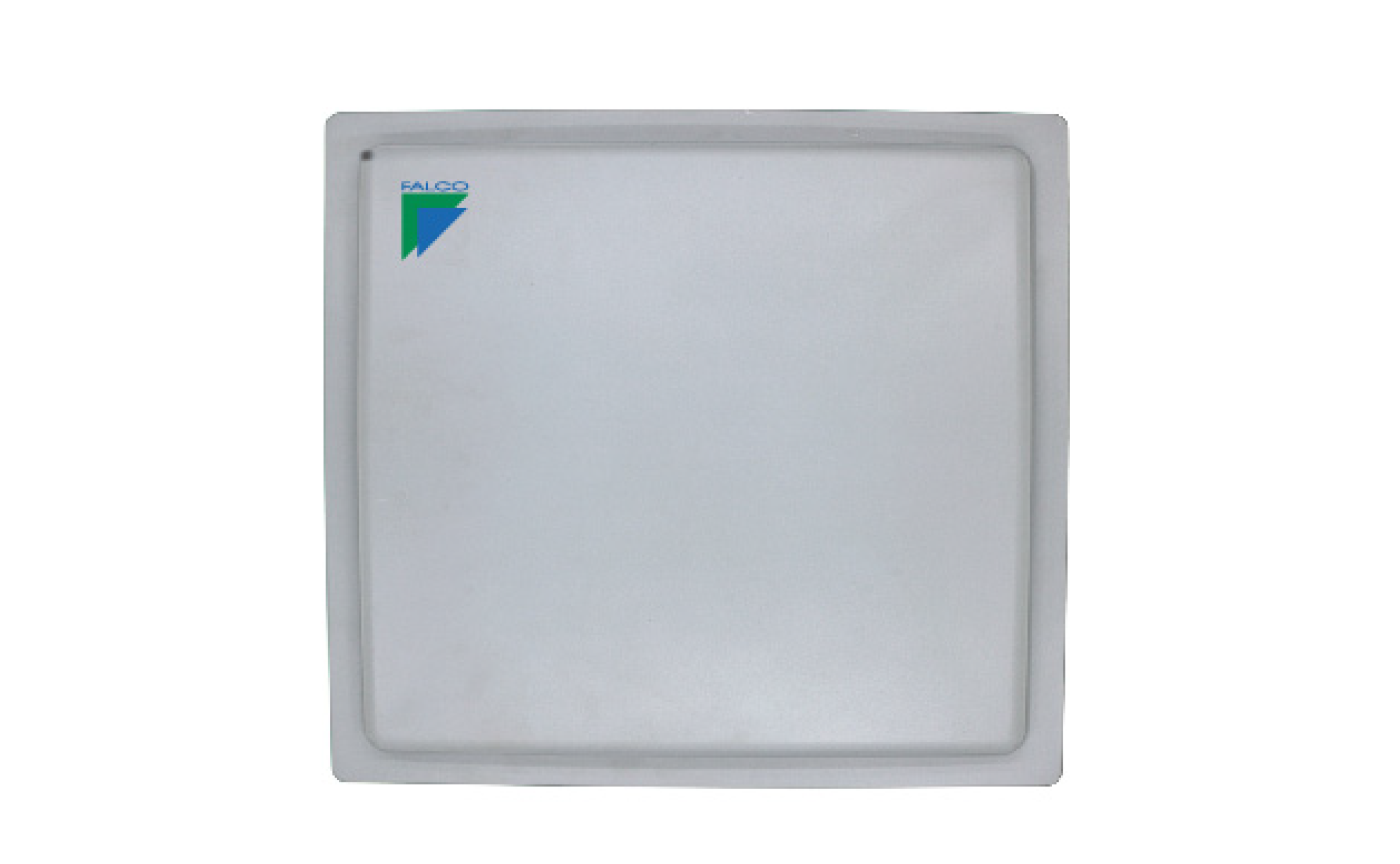

FALCO AY-MR6111E Ultra Hybrid UHF Long Range RFID

The FALCO AY-MR6111E Series reader is an Ultra-High Frequency (UHF) long range reader that able to read up to 6 meter off air. Since the reader only requires UHF passive card without battery, this can help to save our environment by using the green power technology.

The FALCO AY-MR6111E Series reader is SIRIM Certified approval with 919 MHz to 923 MHz frequency range required by MCMC. This reader delivers reliable and secure access control that is easy to manage and maintain.

• SIRIM Certified approval with 919 MHz to 923 MHz frequency range required by MCMC.
• XD (Non duplicate) is unique encryption to avoid duplication of unauthorized card.
• Advance anti-interference technology. Buzzer sound when reader detecting Falco UHF (XD) Card.

Model
AY-MR6111E
AY-MR6111E XD

Memory
16KB tag data memory and
32KB Ferroelectric memory

Power Supply
DC 9 ~ 15v

Output Port
Wiegand-26, 34
Wiegand-34

Dimension
440 x 440 x 50 mm

Beeper
Yes

Protocol
ISO18000-6B / 6c, EPC G2

Sensitivity
80dBm(12dBi antenna
more than 12m)

Reading Speed
Multi tag-200 pcs/sec,
single tag 2000 times/min

Weight
2 kg

Frequency Range
919 ~923 MHz (SIRIM for
MCMC Compliance)

Working Temperature
20 ~ 60 °C

RF Power
0~31dBM adjustable

Data Interface
100M Ethernet Interface
RS232/RS485 interface
wiegand 26/34, Relay
