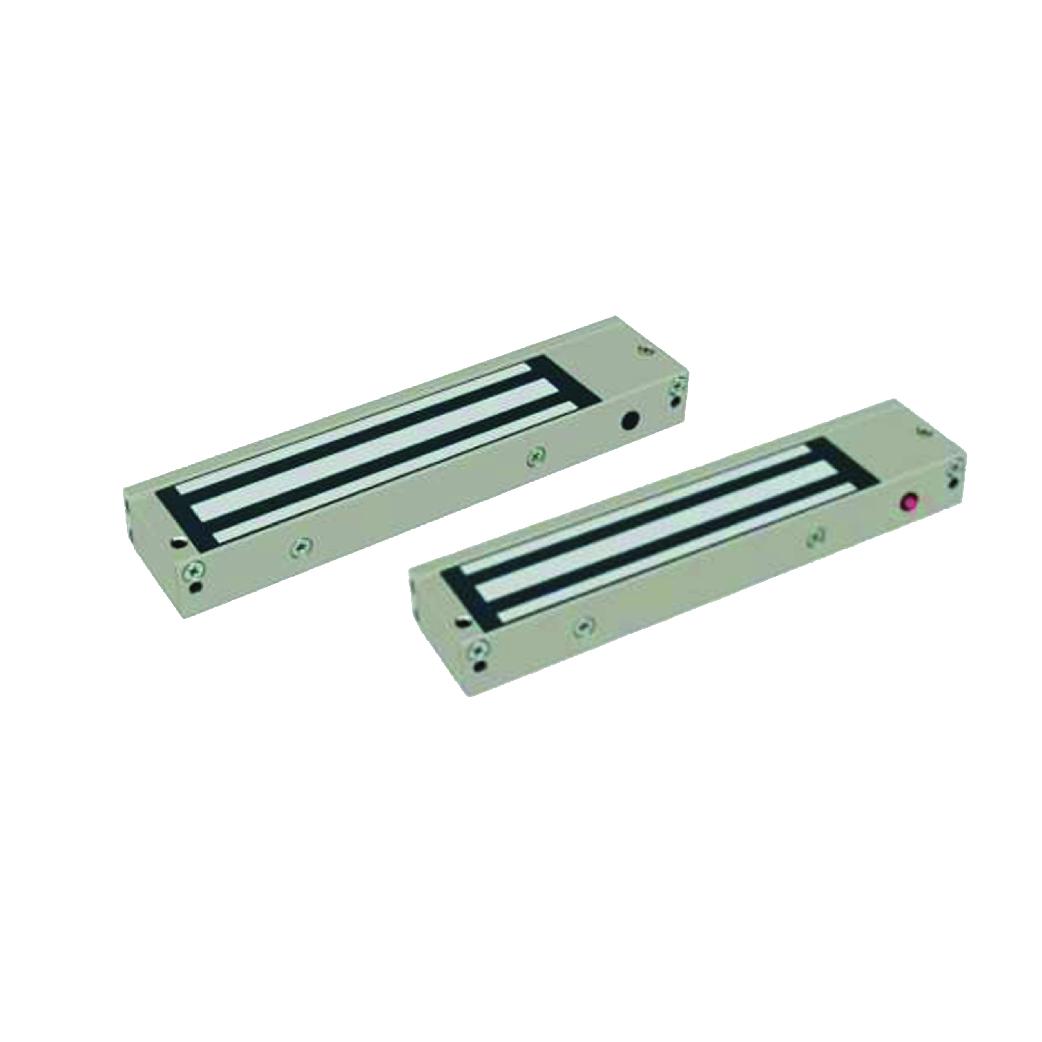

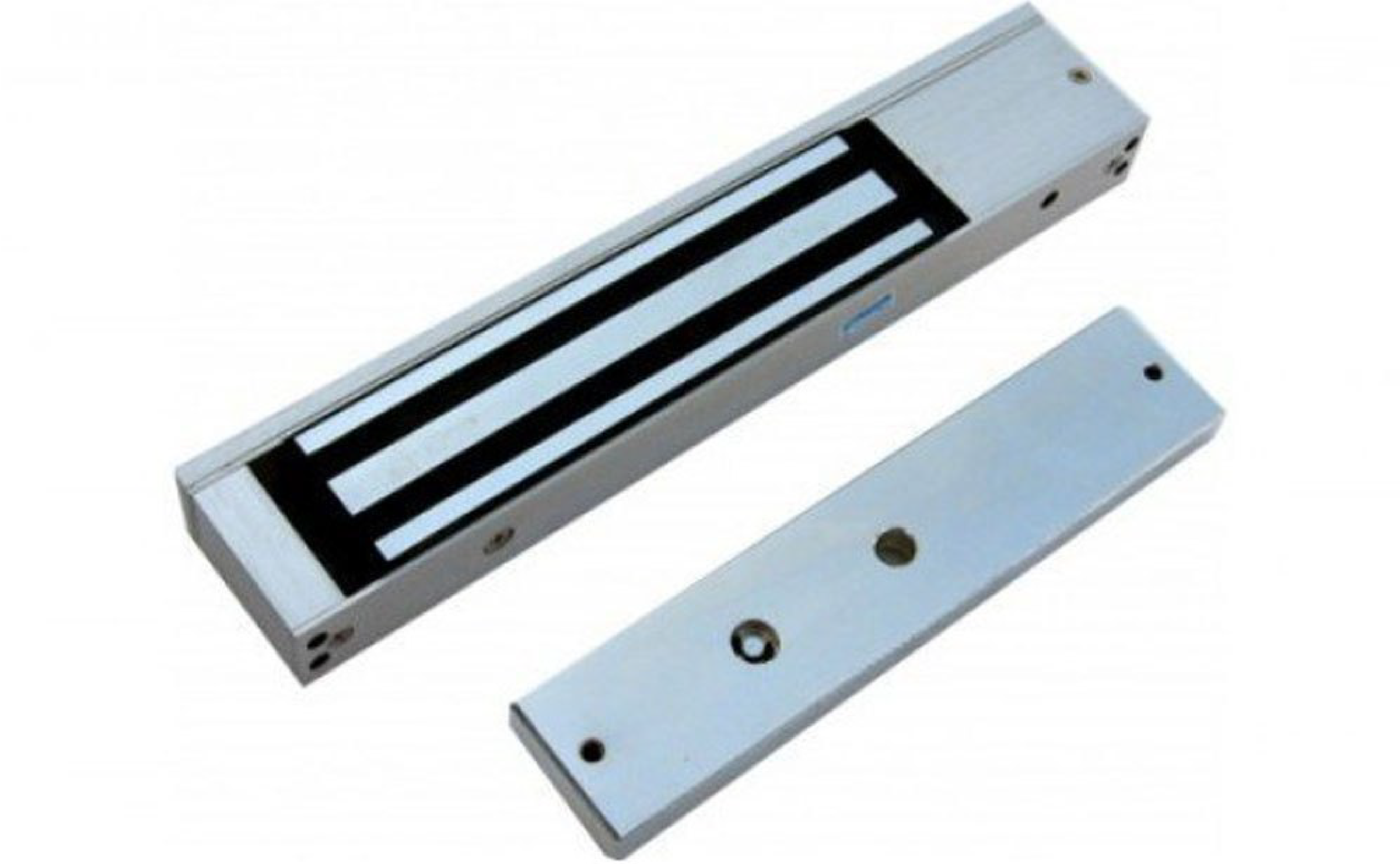

PoE electromagnetic lock is engineered to deliver secure and efficient door-locking performance using Power-over-Ethernet technology. Built with advanced electronic components and high-quality materials, this lock simplifies installation by eliminating the need for a separate power supply. It provides strong holding force, stable operation, and seamless integration with modern access control systems.
Its intelligent power management, long service lifespan, and low maintenance requirements make it an ideal solution for commercial buildings, offices, and network-based security environments.
Code: FA-600
Category: Accessories
Subcategory: Lock
Brand: Falco
Description:
VOLTAGE INPUT : 12 VDC
CURRENT DRAW : 12 V @ 300 mA / 12 V @ 330 mA (LED)
HOLDING FORCE : UP TO 550 lbs
ANTI-RUST : BLUE ZINC PLATING (SURFACE TREATEMENT)
OPERATING TEMPERATURE : 0 ~ 55 ᵒC
OPERATING HUMIDITY : 0 ~ 95 % (NON CONDENSING)
WEIGHT (MAGNET) : 1 KG
DIMENSIONS : MAGNET : 220 (L) Х 42 (W) Х 25 (T) mm
ARMATURE : 180 (L) Х 38 (W) Х 11 (T) mm
FEATURES : LOW CURRENT CONSUMPTION / RELIABLE HOLDING FORCE
COSMETICIZE ANODIZED ALUMINIUM CASING
SURGE AND SPIKE PROTECTION PCB / ANTI TAMPER JAM NUTS
ANTI RESIDUAL MAGNETISM KICK OFF BUTTON
DURABLE AND SILENCE OPERATION
LED INDICATOR : GREEN & RED
