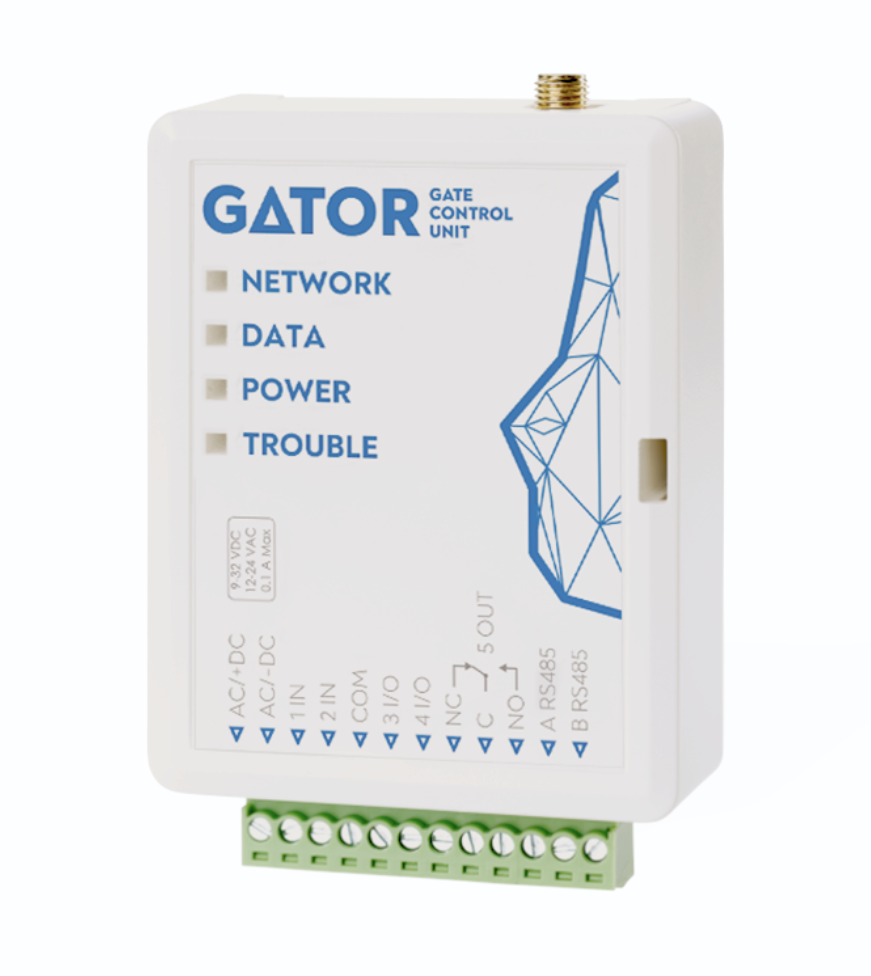

The Gator is a professional 4G LTE cellular controller designed for effortless remote management of gates, barriers, and garage doors. Whether for a private home or a high-traffic commercial parking lot, Gator allows you to grant access to up to 997 users via the Protegus 2 app, a simple phone call, or SMS. Experience secure, reliable, and “subscription-free” control that turns any entrance into a smart access point.
Flexible Control Options – Control your gates the way you want: via the Protegus 2 app, a free-of-charge phone call, or a secure SMS command. No more searching for physical remotes.
Massive User Capacity – Supports up to 997 unique users. Perfect for residential complexes, office buildings, or industrial sites. Manage the entire user list remotely with ease.
Real-Time Gate Status – Always know the state of your gates. With 2 on-board inputs, the Gator sends instant notifications if the gate is left open or if it has been forced.
Reliable 4G LTE Link – Future-proof 4G LTE connectivity with 2G fallback. Operates independently of local Wi-Fi, ensuring your access point is always reachable, even in remote areas.
FEATURES:
Easy installation – only insert a SIM and connect the controller to device you want to control.
One 1A relay and two PGM outputs to:
• Control any device;
• Full and partial control of gates, or opening only doors.
Remote control with:
• Protegus 2 app (iOS, Android, Web);
• Phone call (cost-free, device rejects incoming calls);
• SMS messages.
Remote setup and administration – add users, and change settings with:
• TrikdisConfig;
• Protegus 2 app;
• SMS commands.
Send events to security company receiver.
GSM 850 / 900 / 1800 / 1900 MHz
Power supply voltage: 9-32 V DC 12-24 V AC
Current consumption: 100 mA
Inputs 2, selectable type: NC, NO, EOL=10 kΩ
Universal inputs/outputs: 2, can be set either as input IN with type: NC, NO,
EOL=10 kΩ, or output OUT (open collector (OC) 50
mA)
Output: 1, relay, 1 A 30 V DC, 0,5 A 125 V AC
Unsent events: memory Up to 60 events
Event log: memory Up to 5000 events
Users who receive messages and have permission to control 7
Users who have permission to control: 1000
Operating environment: Temperature from -10 °C to 50 °C, relative humidity
– up to 80% at +20 °C
Communicator dimensions: 88 x 62 x 26 mm
Weight: 0.08 kg
