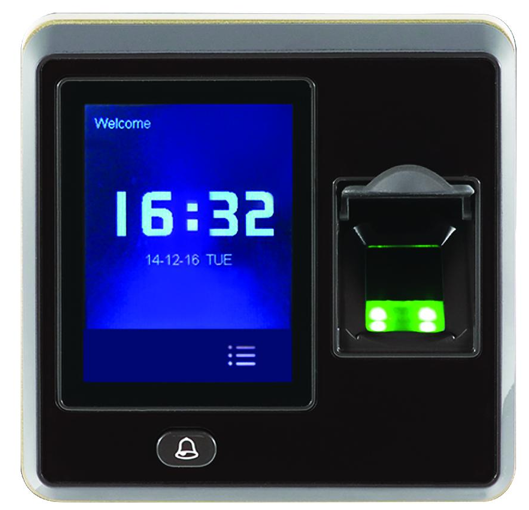

Code: F04
Category: Access Control
Subcategory: Door Access
Brand: Granding
Description:
Specification: Model: F04 LCD: 2.8-inch touch Screen
Fingerprint Sensor: Optical Sensor(500DPI)
Algorithm Version: Finger VX10.0
Communication: TCP/IP, RS485, USB Host
Verification Mode: Fingerprint, Card, Password, Fingerprint/Password/Card, Card & Password Capacity: F
Fingerprint: 1,500
Card: 5,000 (optional)
Logs: 80,000
Access control Interface: Electric lock, Door sensor, Alarm, Exit button, Door bell
Wiegand Signal: Wiegand input & output Aux.
Input: 1ea for linkage function
Power supply: DC12V/3A (PS-3A is optional)
Operating Temperature: 0~45℃（32°~113°F）
Operating Humidity: 20~80%
Dimension(W*H*L): 105*105*34mm
Function support: Built-in relay, Interface with alarm, Door sensor, Exit button and door lock for access control, 50 timezones, 10 combination, 99 groups, auto state, Schedule bell, Door bell, Holiday control, 9 PIN User ID Customize function: ID/Mifare card reader
