Model: INP-RLY-08
8 inputs per module, up to 32 per controller

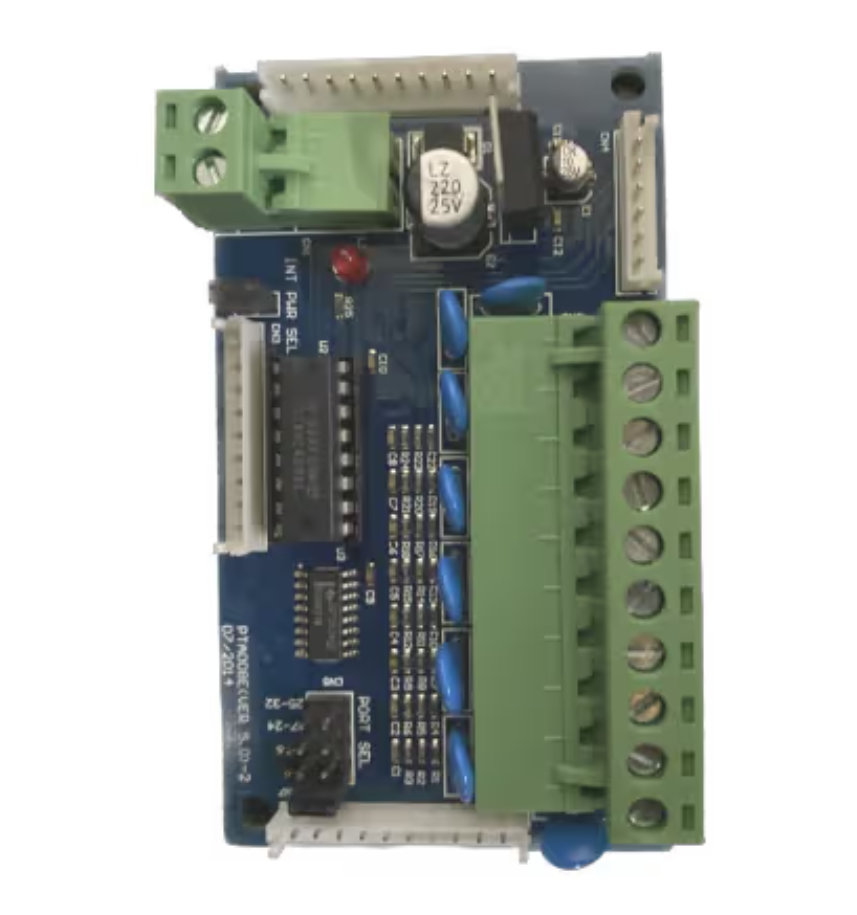

Input Board Module for Door Access Controller 8 digital inputs per module for connecting alarm devices including PIR sensors, magnetic contacts, and more. Each controller supports up to 4 modules, enabling control of 32 total inputs per controller.
8 digital inputs per module
Compatible with PIR sensors, magnetic contacts, and alarm devices
Up to 4 modules per controller (32 total inputs)
Dry contact input support (NO/NC)
Powered by controller
Per-input LED status indicators
Screw terminal connections
DIN rail or wall mountable
| Inputs | 8 digital inputs per module |
| Max Modules | 4 per controller (32 total inputs) |
| Input Type | Dry contact (NO/NC) |
| Compatible Devices | PIR, magnetic contacts, alarm devices |
| Input Voltage | 5-24V DC |
| Terminal Type | Screw terminals |
| Communication | Wired to controller |
| Power | Powered by controller |
| LED Indicators | Per-input status LED |
| Dimensions | 100 x 60 x 25mm |
| Mounting | DIN rail or wall mount |
