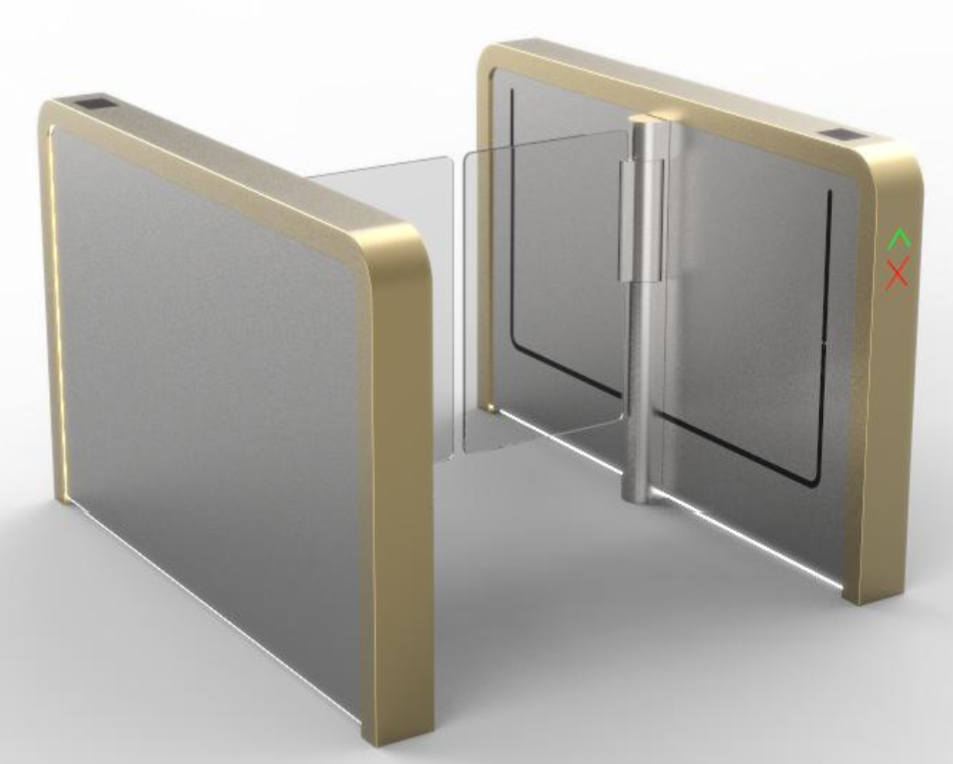

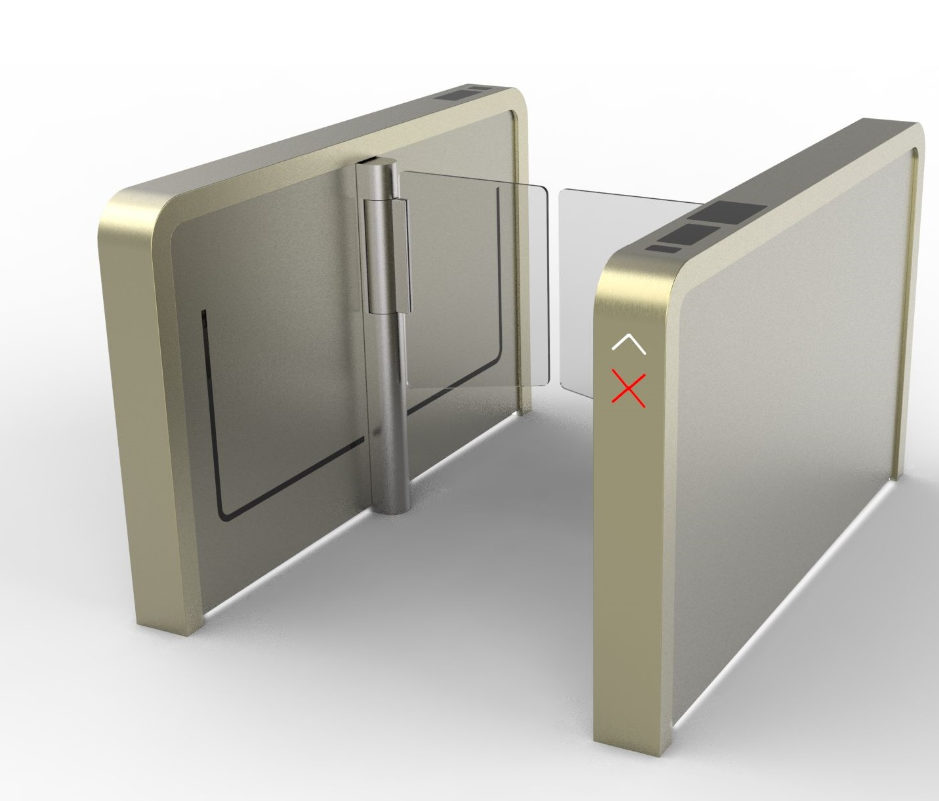

Speed Gate Turnstile Stainless Steel Luggage Friendly ASW-AR-15

Advantages

1. Adopt hidden IR sensor style;
2. Apply screwless design to the whole cabinet;
3. There is no keyhole around the whole cabinet;
4. The gap between top cover parts and body parts≤ 0.2mm.

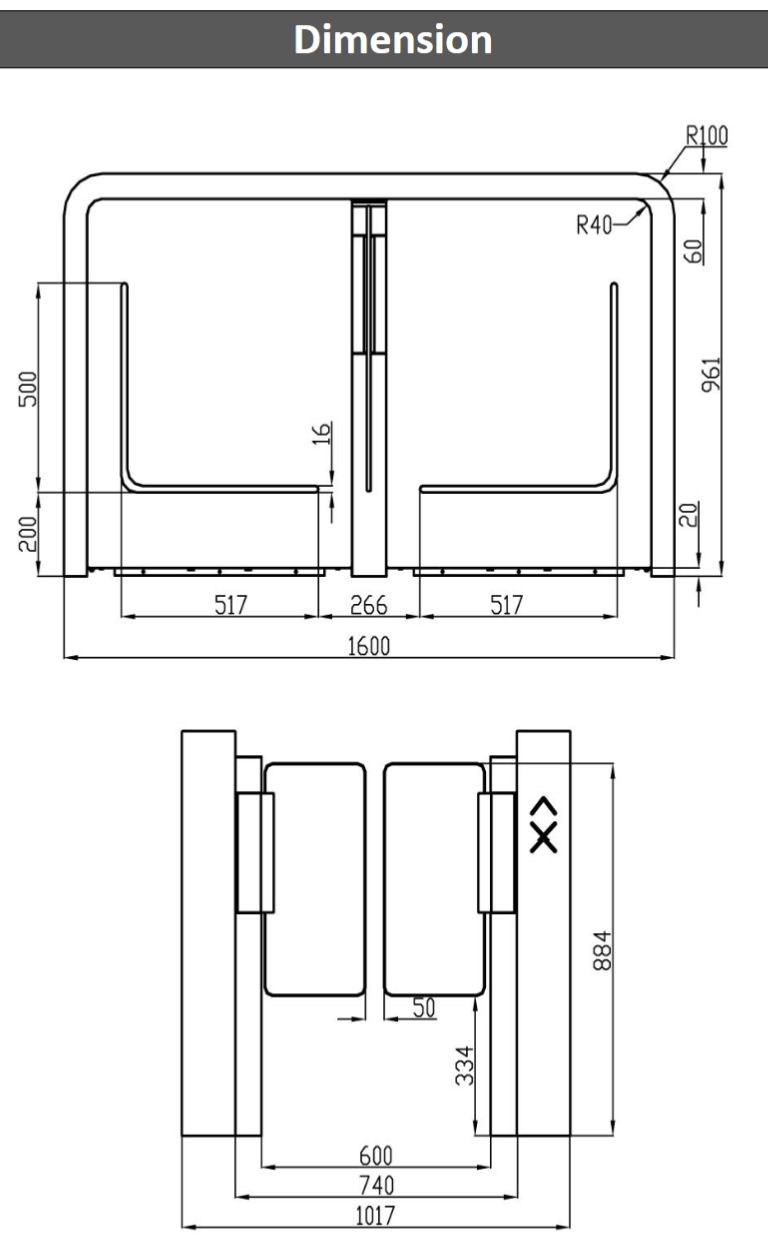

Functions | Dimension:

1. Anti-trailing alarm and anti-reverse;
2. Buzz with light alarm if illegal entry;
3. With voice broadcast(volume can be adjusted);
4. With memory opening function (up to 500 times), delay closing and overtime closing functions;
5. With function of counting the number of people passing;
6. With standard fire alarm input interface, the gate will automatically open in case of fire;
7. With anti-break-in function: the wings will automatically close unless received open signal;
8. With anti-pinch function: the wings will stop running and rebound to a certain angle when it is blocked during operating;
9. With IR sensor anti-pinch function: when gate is closing, the wings will automatically open if detect people in the aisle
10. With power-on self-test function;
11. With power-off free passing function, in line with fire protection requirements;
12. With automatic reset function: after reading a valid card, if pedestrian does not pass within the specified time (default 5 seconds, configurable), the system will automatically clear the pedestrian’s rights to pass for this time;
13. With multiple protection when passing:
    a. IR sensor anti-pinch
    b. Traffic logic anti-pinch
    c. Current detection anti-pinch
14. When the trailing mode is turned on, there are two traffic modes:
    a. alarm while wings opening
    b. alarm while wings closing
15. When the anti-reverse mode is turned on, there are three modes:
    a. alarm while wings opening
    b. alarm while wings closing, and clear the right to pass
    c. alarm while wings closing, and retain the right to pass
16. The parameters can be set uniformly through the buttons and the LCD screen.
