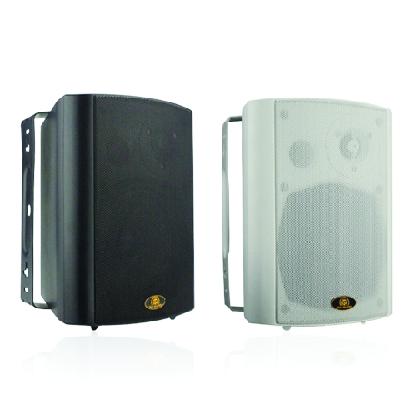

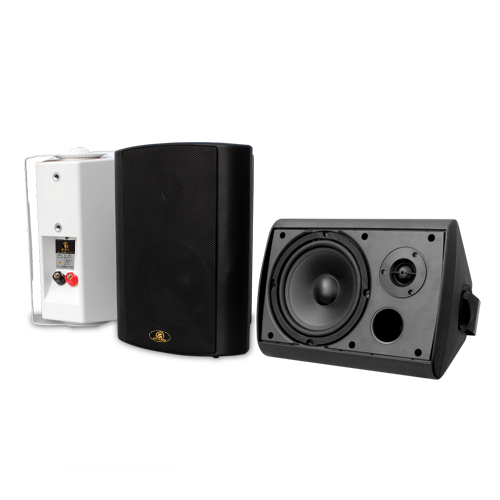

Two Way Voice Wall Mounting Speakers RH-MS15

The RU-AUDIO Two Way Voice Wall Mounting Speaker RH-MS15 Series offers three sizes of options with rated power 20W,30W,40W separately.These 100 volt distributed speakers use two-way sound system by adopting polypropylene woofer driver and silk dome tweeter.

Built-in step-down transformers to simplify impedance calculations and to minimize power loss over the speaker cables,are most appropriate for high-voltage audio distribution systems.

The trapezoidal design allows for the enclosures to be mounted neatly into corners with U shaped stainless and rotatable mounting bracket is supplied.
A sophisticated version with wattage tappings selectable by an integral rotary switch on rear for selections of 70 volt,100 volt and 8 Ohm.

※ 2-way wall mount speaker.
※ Three speaker sizes are available with separate woofer size 4”, 5” and 6”.
※ Black and white color are available.
※ Built-in 100V transformer (this technique of line input 100V reduces signal losses on
a longer distance and allows easy parallel connection of multiple loudspeakers).
※ Also 8 Ohm input is available without transformer.
※ ABS enclosure, metal grille, metal bracket.
※ Fast installation by U shaped stainless and rotatable mounting bracket could be adjusted at request.

Code: RH-MS15/6

Category: PA BGM

Description:
Model: RH-MS15/6
Rated Power (W): 40W
Line Voltage (V): 100V
Frequency Response: 70Hz-20KHz
Sensitivity (1w,1n): 88±3 dB

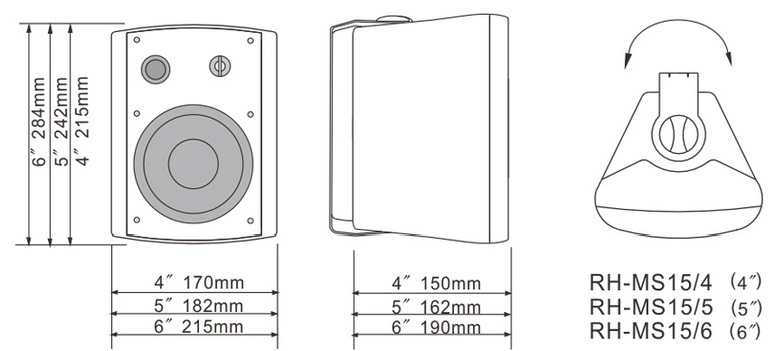

Dimensions (mm): 284*215*190mm
Material: ABS enclosure, metal grille, metal bracket; Black and White available
Net Weight: 3.50kg
Speaker Driver: 6″*1+1″*1
