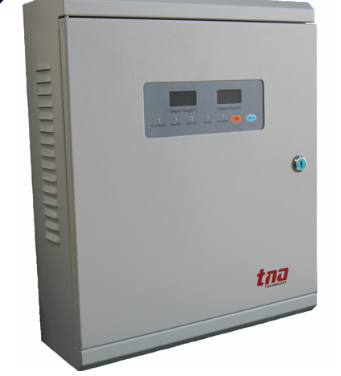

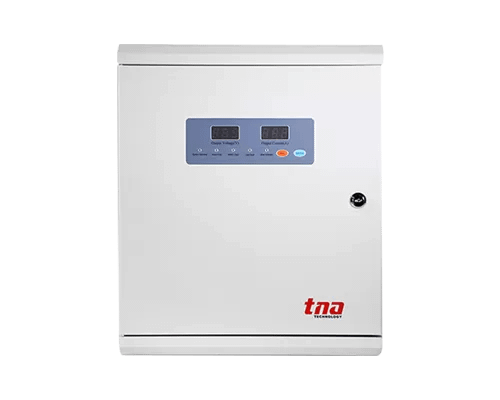

TX24-10A Intelligent Power Supply Unit

TX24-10A Intelligent PSU is to solve the problem of power supply and development of field equipment, power output is about 265W（DC26.5V/10A）. The main function of the power supply for the conversion of AC220V voltage to DC26.5V, and with the preparation of electric power supply and power charging function, the standby battery provides the output of the DC24V/12Ah in the AC220V to stop the power supply, start to work with the equipment on the spot to play the role of continuation.

The power display function is comprehensive, there are output voltage, output current display, the main power fault, Battery power fault / charge fault(battery fault and charge fault share the LED indicate and fault flag), circuit fault indication, and overload, over current, short circuit protection function. TX24-10A Intelligent PSU has the function of bus network, which can be connected with the TX7004 intelligent fire alarm controller of the company, and provides the corresponding linkage / fault information for the alarm controller.

• EN54-4 :1997+Al: 2002+A2: 2006
• Intelligent 5 or 1 O Ampere power supply unit
• Addressable and can sit on the loop
• Digital display of output voltage and load current
• Added protection against over charge, overload and over usage
• Fully monitored with self-test function
• Wall mount installation

Loop Power:24VDC [16V to 28V]
Main Power: AC [100V to 240V]

Battery: DC24V/12Ah Sealed lead acid battery (internal)

Maximum capacity: DC26.5V、10.5A(Main power supply)

450 mm x 380 mm x135 mm
