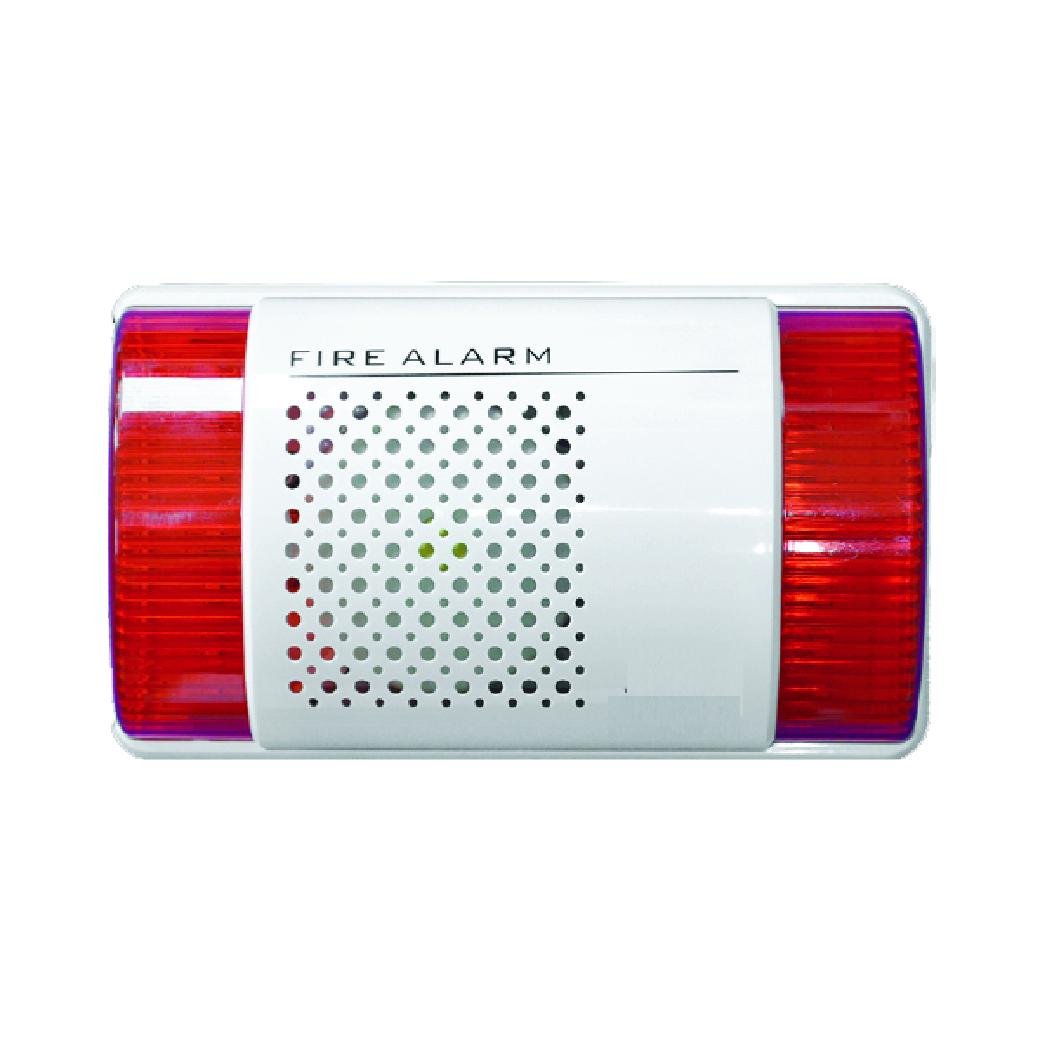

The TX7301 Intelligent Sounder and Strobe is an addressable alarm device for compatible fire detection and alarm systems (FDAS). It warns people through sound, flashing LEDs, or both. As a result, occupants can recognize an alarm and follow the building’s emergency procedures.
The TX7301 offers 17 programmable tones and a sound level of 102 dB(A) at 1 meter. In addition, its 10 LEDs provide a clear visual warning.
Installers can select sound-only, strobe-only, or combined operation. Also, they can set pre-alarm and evacuation signals. For added flexibility, the device supports one or two addresses.
The device uses 24V DC loop power or a compatible external power supply. Moreover, it supports low-power operation.
However, its IP21 rating makes it suitable for indoor wall mounting, not exposed outdoor locations. Therefore, installers should confirm panel compatibility and site requirements before installation.
3S Security Solutions Specialists Inc. supplies Tanda FDAS equipment in the Philippines. We also assist contractors, installers, and system integrators with product information and quotations.
Contact 3S Security PH to request a quote for the TX7301.
| Specification | Details |
|---|---|
| Brand | Tanda / TNA |
| Model | TX7301 |
| Product Type | Addressable Sounder and Strobe |
| Sound Output | 102 dB(A) at 1 meter |
| Programmable Tones | 17 |
| LED Indicators | 10 |
| Alarm Modes | Sounder, Strobe, or Combined |
| Address Range | 1–254 |
| Address Configuration | Single or Dual |
| Power Supply | 24V DC, Loop or External |
| Protection Rating | IP21, Indoor |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 152.5 × 88.5 × 46.75 mm (without base) |
| Standard | EN54-3 (manufacturer-stated compliance) |
