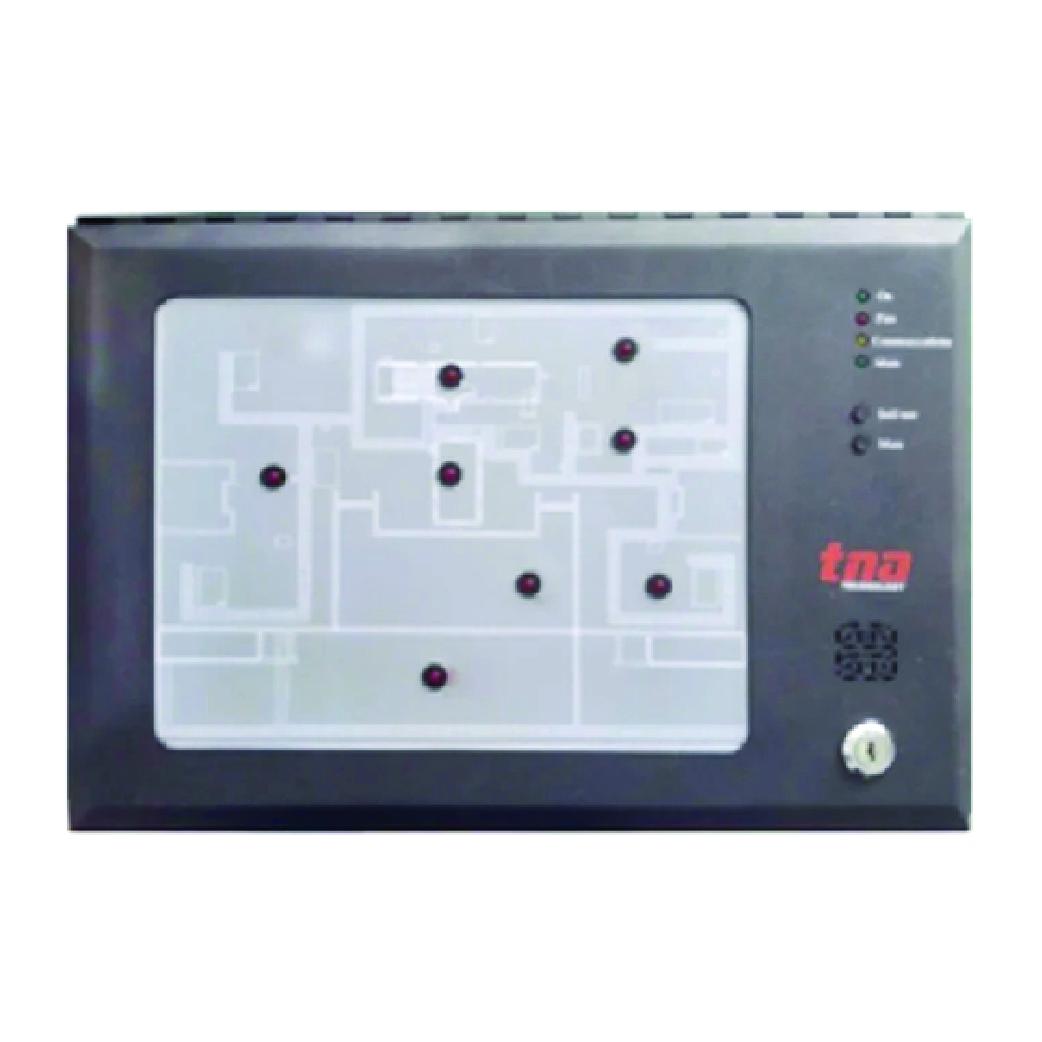

TX7331 Mimic Panel Make – Tanda Fire Control Panel

TX7331 Intelligent Graphic Repeater Panel is designed with built-in MCU processor and it can fast relay response with simultaneous audible and visual signal output. This repeater panel can also program to limit the zone display from All Zones into a particular zone or device.

Code: TX7331

Category: Fire Detection and Alarm System (FDAS)

Subcategory: Fire Detection and Alarm System (FDAS)

Brand: Tanda

Description:
Power Rating
Power Supply : DC-24V (External EN54-4 PSU is required) Recommended PSU is TX24-5A/10A
Bus Voltage : 16V-28V
Bus Current : 1.0mA
Bus Alarm Current : 1.2mA
Standby Current : 25mA
Alarm Current : 80mA
Indicator : LED Display
Material / Colour : Flat sheet Metal / Light Gray
Dimension : 349mm x 275mm x 68mm (Standard)
IP Grade : IP30
Operating Environment
Temperature : -10℃~+500℃
Relative Humidity : ≤95%, non-condensing
