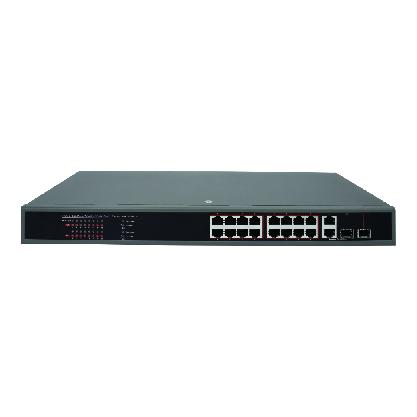

Centro, PoE 2018-16P-250

The POE-2018-16E-250 is a 16 Port POE Switch with 2 Gigabit Combo Uplink Ports. This POE Switch provides power over your ethernet cable, therefore Video and Power are all in the same cable. If you are installing several IP Cameras, you can use this switch in conjunction with a Non-POE NVR. The POE-2018-16E-250 has 2 Gigabit 100/1000 Uplink Ports with SFP Option. If you are looking for affordable Power Over Ethernet Switch with stable operation and good transmission distance, then you should consider this 16 Port option.

Code: POE-2018-16P-250

Category: Accessories

Subcategory: PSU

Brand: Centro

Description:

Power supply: Built-in power supply
Voltage Range: AC100~240V
Consumption: 250W for 16 PoE
Speed: 1~16 Port: 10/100Mbps, G1 -G2.Gigabit Combo
Transmission Distance: 100Meter (328 ft) for RJ 45,
2Km 20Km for SFP Port The optical module is optional
Ethernet Standard: IEEE 802.3/802.3u/802.3ab/802.3af/at
Switching capacity: 7.2G
Transfer Rate: 14,880 pps for 10Mbps, 148,800 pps for 100Mbps,
148,8000 pps for 1000Mbps
MAC Address: 4K MAC address table
On Green: The port is connecting
Blinks – : The port is receiving or transmitting data.
Off – : The port is not linked successfully with the device
On Orange: PD is connected
Off – : No PD is connected or power forwarding fails
PoEpin assignmnet: V+( Rj45 Pin 1, 2), V-(Rj45 Pin 3,6)
Working Temperature: 0~40℃
Storage Temperature: -40~70℃
Humidity: Non condesing 0~90 %
Mechanical Dimension: 440 x 200 x 44mm
Color: Gray
