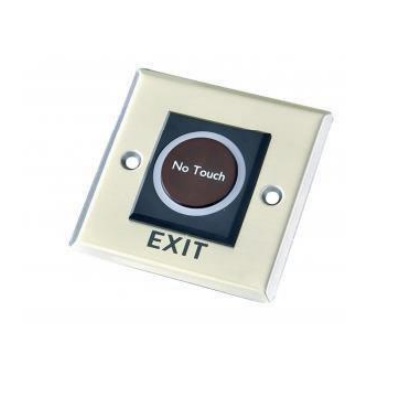

EL-ABK-806B no touch exit sensor incorporates innovative touch free sensor technology using infrared sensors. It is fully compatible with any access control system to work as door release sensor.
Features
Dimension 86 x 86 x 25 (mm)
Input 12V DC
Power Consumption Standby 40mA, Activate 70mA
Contact Rating 3A @12-28V
Output Contact NO/NC/COM
Mechanical life 500,000 Tested
Operating Temperature -10°C – 55°C
Operating Humidity 0 -95% (Relative Humidity)
Detection Range 0.1 – 10cm
Indicator White LED – Power Off
Blue LED – Power On (Standby)
Green LED – Power On (Sensation)
