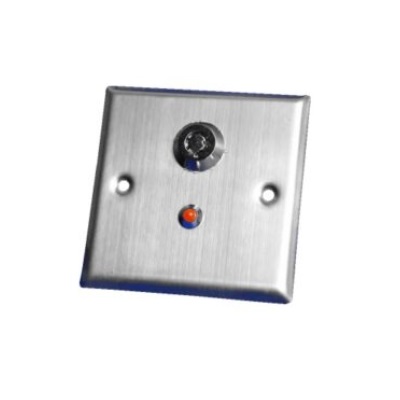

Elock EL-KS3L Key Switch with LED – Door Access Control

The Elock EL-KS3L Key Switch is a key-operated electrical switch for compatible door access control systems. It allows authorized personnel to change an electrical contact using a physical key. As a result, the switch can provide controlled door release or other approved access functions.

The EL-KS3L features a stainless steel faceplate and an LED status indicator. In addition, its two-position design supports simple On/Off operation.

3S Security Solutions Specialists Inc. supplies Elock door access components in the Philippines for commercial and industrial security projects.

Key Features and Benefits

• Key-Operated Control: Allows authorized personnel to operate a compatible electrical circuit.
• Two-Position Switch: Provides On/Off key operation.
• SPDT Contacts: Supports normally open (NO), normally closed (NC), and common (COM) connections.
• LED Status Indicator: Provides visual feedback when connected and configured correctly.
• Tamper Terminal: Supports a designated tamper connection for compatible monitoring arrangements.
• Stainless Steel Faceplate: Offers a durable, professional appearance.
• IP44 Protection: Provides splash resistance for suitable sheltered installations.
• Flexible Mounting: Supports flush or panel installation.
• Compact Design: Uses an 86 × 86mm faceplate.

How Does the Elock EL-KS3L Key Switch Work?

First, an authorized user inserts the key into the switch.

Next, turning the key changes the electrical contact between the common terminal and the selected contact.

The connected access control system then responds according to its wiring and configuration.

For example, the switch can provide a key-operated release signal to a compatible door controller.

In addition, the LED can display a configured electrical status when connected to an appropriate supply.

Therefore, the Elock EL-KS3L Key Switch offers a simple manual control option for compatible security installations.

However, the switch does not authenticate users electronically. It also does not operate as a complete standalone door controller.

Common Applications

The EL-KS3L suits installations where authorized personnel need a physical key-operated control.

• Corporate Offices: Provide key-operated access functions at selected entrances.
• Commercial Buildings: Support manual control of compatible electronic doors.
• Warehouses: Add authorized key control to designated access points.
• Factories: Support controlled operation at restricted entrances.
• Security Control Rooms: Provide a physical switch for approved security functions.
• Building Access Systems: Work with compatible door release and control circuits.

Before installation, contractors should confirm the required switching behavior, contact load, and mounting arrangement.

LED Key Switch vs. Push-to-Exit Button

An LED key switch requires a physical key to operate its contacts. In contrast, a standard push-to-exit button can be operated without a key.

For example, a facility may use the EL-KS3L for authorized maintenance or security control. Meanwhile, a push-to-exit button may serve normal exit requests where appropriate.

However, a key switch should not replace required emergency exit hardware or compromise safe egress.

Door Access Control Compatibility

The EL-KS3L supports compatible door access controllers and switching circuits.

For example, installers may connect its dry-contact terminals to a controller input. The controller can then perform a configured action.

The switch also has dedicated LED connections. However, installers must check the correct LED supply and wiring requirements before connecting power.

Explore our Door Locks & Accessories for related electronic locking devices.

You can also browse our Push to Exit Buttons and Security Access Control products.

Elock Key Switch Supplier in the Philippines

3S Security Solutions Specialists Inc. supplies Elock door access components and accessories nationwide.

We assist security installers, resellers, contractors, and system integrators with product selection and quotations. In addition, our team supports technical inquiries and project requirements.

For manufacturer details, visit the official Elock EL-KS3L product page.

Need an Elock EL-KS3L Key Switch with LED? Request a quotation from 3S Security PH.

Frequently Asked Questions

What is the Elock EL-KS3L Key Switch?

The EL-KS3L is a stainless steel key-operated door access switch with an LED indicator. It provides electrical contact switching for compatible security control systems.

Does the EL-KS3L have an LED indicator?

Yes. The model includes an LED for visual status indication. However, its operation depends on the correct electrical connection and system configuration.

What electrical contacts does the EL-KS3L support?

The switch provides NO, NC, and COM terminals through an SPDT contact arrangement. It also includes a designated tamper terminal.

What is the maximum contact rating?

The manufacturer specifies a maximum contact rating of 3A at 36V DC. Installers must keep the connected load within the approved limits.

Can I use the EL-KS3L with a magnetic door lock?

Yes, when connected through a suitable access control or switching circuit. However, installers must verify electrical compatibility and required safety functions.

Can the EL-KS3L be installed outdoors?

The device has an IP44 splash-resistant rating. Therefore, sheltered installation may be suitable, but exposed outdoor locations require additional protection and manufacturer approval.

Is the EL-KS3L an emergency door release switch?

It is primarily a key-operated control switch. It should not be treated as a substitute for required emergency door release equipment.

Where can I buy an Elock EL-KS3L in the Philippines?

3S Security Solutions Specialists Inc. supplies Elock EL-KS3L switches and related door access products. Contractors and installers can request specifications and quotations.
