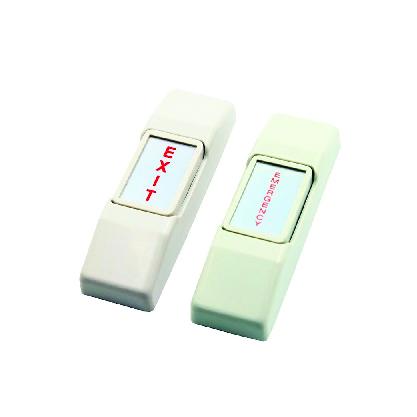

Elock, Push to Exit Button Small (EL-EB5A)

The EL-EB5 and EL-EB5A are compact emergency and exit push buttons designed for reliable indoor use. Made from durable ABS plastic, they provide a cost-effective and practical solution for emergency release or standard exit applications. With their slim form factor, they are ideal for installations where space is limited, while still ensuring dependable performance.

• Contact Rating: 0.5A @ 24V DC max
• Contact Type: Momentary
• Material: ABS Plastic
• IP Rating: IP40 (Dry Indoor Use)
• Dimension: 76 (H) × 15 (D) × 23 (W) mm

Emergency / Exit Push Button ( NC/NO & NO/NC )
Specification:
 N.C. & N.O. Circuit Connections
 Screw Connection Terminal
 Momentary Contact
 Contact Type – N.C. & N.O. contact
 Contact Rating : 0.5 Amp, 24V DC max.
 Suitable for most security system
 Dimension : 76(L) X 23(W) X 15(H) mm
 CE approved
