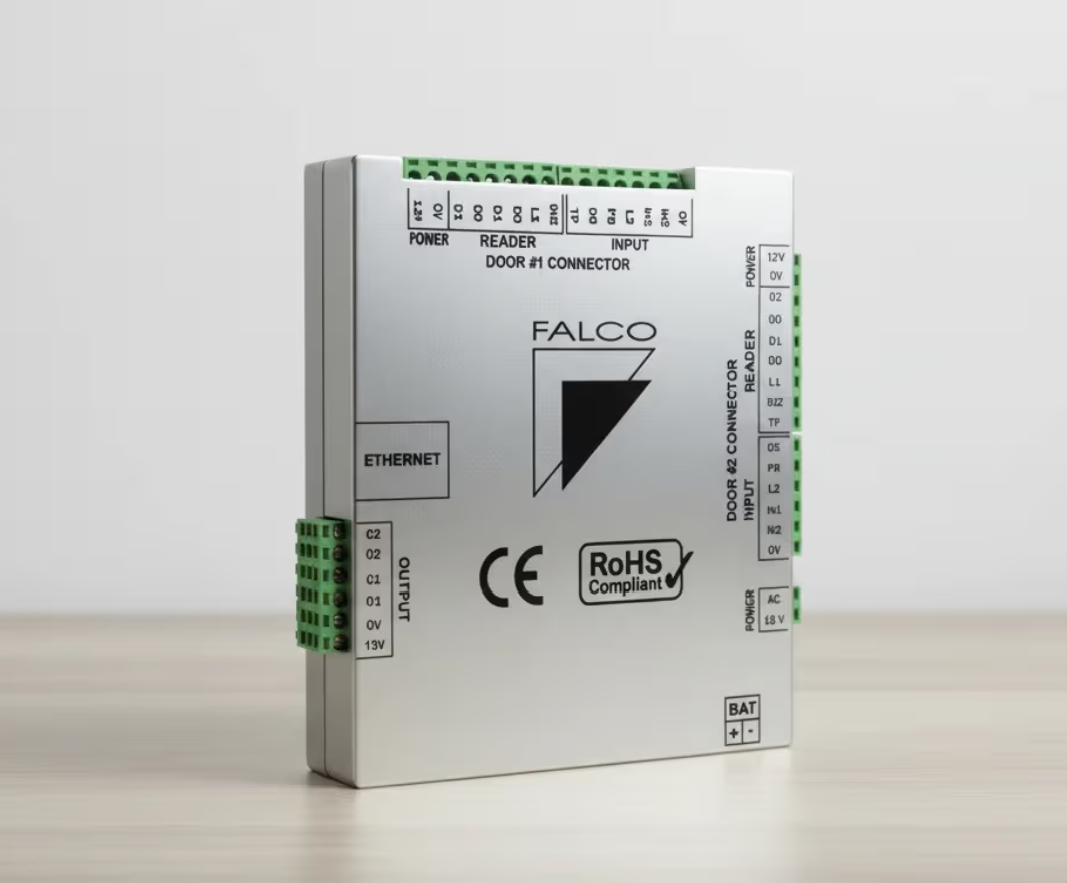

Falco Elevator Access Controller CF PoE

Falco Elevator Access Controller CF PoE – Lift Access Control

High Performance.

• Zero-Latency Verification – Sub-second cardholder verification for up to 100,000 users. Patented algorithm.
• P2P Architecture – Door-level intelligence. Operates during server outages. No single point of failure.
• Fire Alarm Fail-Safe – Immediate door release on alarm events. Independent of server availability.
• Global Anti-Passback – Prevents credential sharing across all doors.
• High-Speed Polling – Real-time transaction processing for high-volume environments.

Secure & Reliable.

• End-to-End Encrypted Communication – End to-end protection with AES-256/OSDP v2 support (Optional).
• Industrial-Grade Protection – surge protection, integrated power supply.
• Full Audit Trail – Stores up to 40,000 events, with expandable options.

One Cable. Done.

• Power + Data Combined – Single Cat 5e/6 cable delivers communication and power.
• Flexible Configurations – Single or double door setups with up to 4 readers.
• Built-in Web Server.

Elevator Access Controller System
Access Control: 1 in / 1 out (single door) or 2 in / 2 out (double door)
Readers: 1 in / 1 out (single door) or 2 in / 2 out (double door)
Reader Technology: Standard Wiegand 26/34 format, OSDP V2 (Optional)
Users: Up to 70,000, upgradeable to 150,000
Events: Up to 40,000, upgradeable to 80,000
Inputs Functionality: Fire alarm, exit push button, door contact, tamper
Security Encryption: AES- 256 (Optional)
Controller Redundancy: Supports 2 destination IP addresses

Communication
Network Interface: RJ45 Ethernet, 10/100 Base-T
Power & Data: Single CAT 5e/6 cable (PoE)
Controller Speed: 10/100 Mbps
Network Protocols: TCP/IP, ARP, DHCP

Electrical
PoE Input: IEEE 802.3af (PoE) or IEEE 802.3at (PoE+)
Minimum Power Requirement: 15.4W per Port (Single-leaf door) or 30 W per Port (Double-leaf door)
Battery Backup: 12 VDC, 7AH (onboard charger)

Mechanical
Dimension: 137 (L) x 117 (W) x 15.5 (H) mm (PCB only)
Weight: 25g (PCB only)

Environmental
Operating Temperature: 0⁰C ~ 55⁰C / 32⁰ ~ 165⁰F (subject to battery specification)
Humidity: 0 ~ 85% Humidity (relative non-condensing)
