SEWO-5216 (Swing Tripod Turnstile)

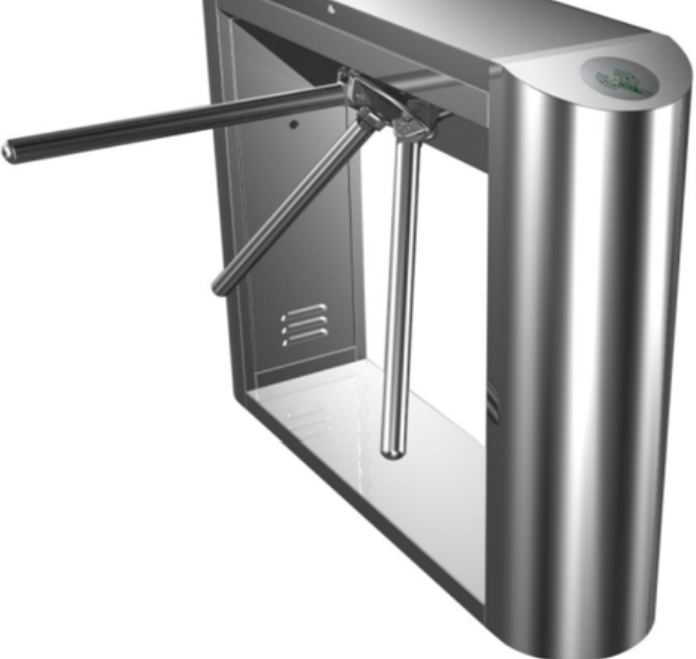

RFID Reader Stainless Steel Full Automatic Vertical Tripod Turnstile

SEWO-5216 Tripod turnstile( RFID Reader Stainless Steel Full Automatic Vertical Tripod Turnstile with Factory Price ) is designed for applications where robust and reliable access control is a requirement but space is limited. The turnstile are available with straight or rounded cabinet ends and a variety finish. A durable cabinet construction ensures long life and minimum maintenance.

These models can be used for both indoor and outdoor application. They can incorporate access control devices such as proximity readers, smart card readers, biometric readers, coin acceptors, etc.
According to different control modules, this series can be divided into Fully-Automatic Type, Semi-Automatic Type, and Manual Type.
Key Features

1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost

2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.

3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

4. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.

5. When power off, the arm will be dropped down (optional set free passage when power off) to the request of fire protection. When power on, the arm can lift by hand.

6. Emergency configuration: The tripod will drop automatically by power off to provide a clear walkway for escape in the event of an emergency

7. Control panel with count and LED digital function. Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing

8. It can be used for intelligent control and management of the passage after equipped with diffent access control system.

9. A valid lock action can allow one passage at one time. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time(from 2-60 seconds, by default, it is 10 seconds) can be set up with the built-in small keyboard or software.

10. Self-recovery function: The machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
The size showing

Code: SEWO-5216

Category: Turnstile

Description:

Specifications:
Power Supply Input: AC110/220V± 10%, 50Hz
Working Voltage: 24V DC
Electro-magnetic drive: 24V DC
Housing: 2.0mm thickness Stainless Steel
Polishing: Brushed surface (Standard) / Polishing surface
Product Weight: About 16KG
Dimensions: Φ 168*1050mm
Swing Arm Length: 500-900MM( Standard 600mm)
Max Tolerance of Swing Arm: 60KG
Swing drive angle: 180 Degree
Swing direction: Single or Double (adjustable)
Drive motor: Brushless DC motor 140W/24V
Mechanical life: Two million
Use age: 8 Years
Transit Speed: 40 persons/min(open often), 25-30 persons/min(close often)
Opening/Closing Time: 1 – 2 seconds
Time needed after Power: 3 seconds
Automatic reset time after fault: 10 seconds
Working Temperature: -30~50 degree centigrade
Protection Level: IP45
Relative Humidity (RH): 5%-90%(without concretion)
Interface: RS485
Control I/O: ± 12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms
