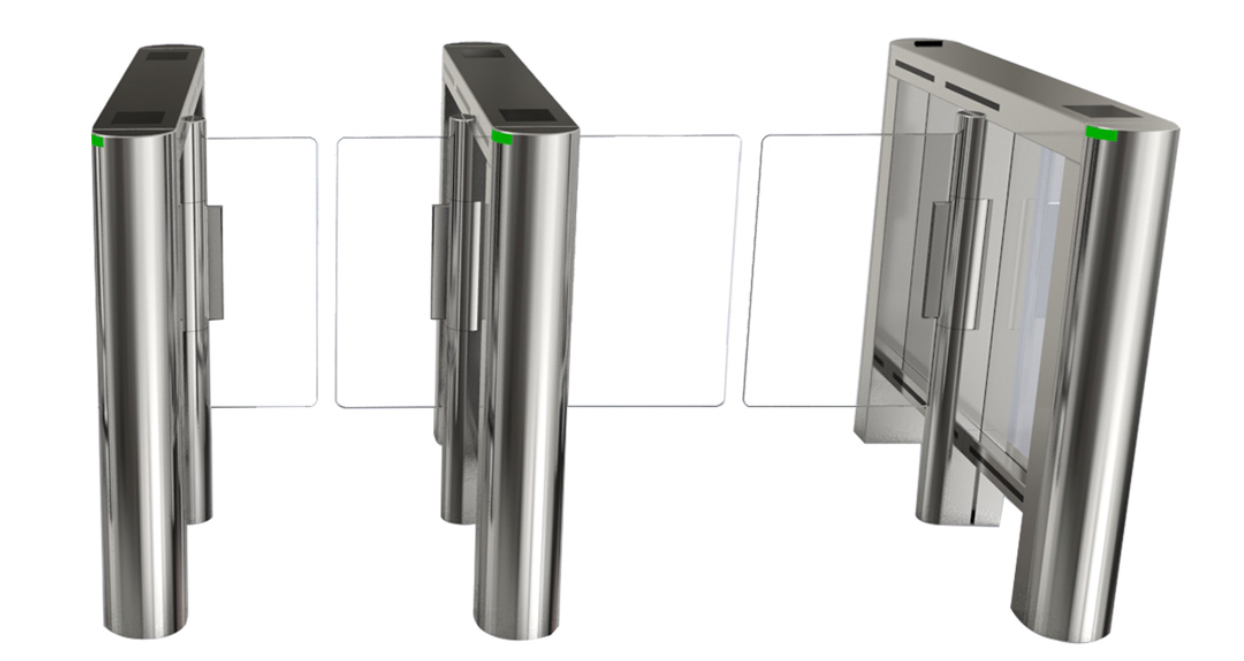

The Zoom Gate Turnstile Glass Swing Door ASW-AR-04 is of sensor-controlled passage way with automatic half height panel doors. They allow for comfortable contactless access with bags or luggage. The barrier with alarm system prevent unauthorized entry with minimum observation, thus ideal installation for strategic high security area like financial building, air port immigration and etc.
Safety Features
Each lane are fitted with safety beams to ensure proper access clearing. Options to cater for children and wheelchair users are available.
Our modern motor mechanism will disengage the door when it is obstructed from opening or closing. Using tampered glass or acrylic, provide an additional safety feature for the pedestrians.
Aesthetics
The offer of customizations and different finishes and colours on our stainless steel further provides designers the freedom to make the environment even more aesthetically beautiful. Option of mild steel powdercoated into variety of colours is also available.

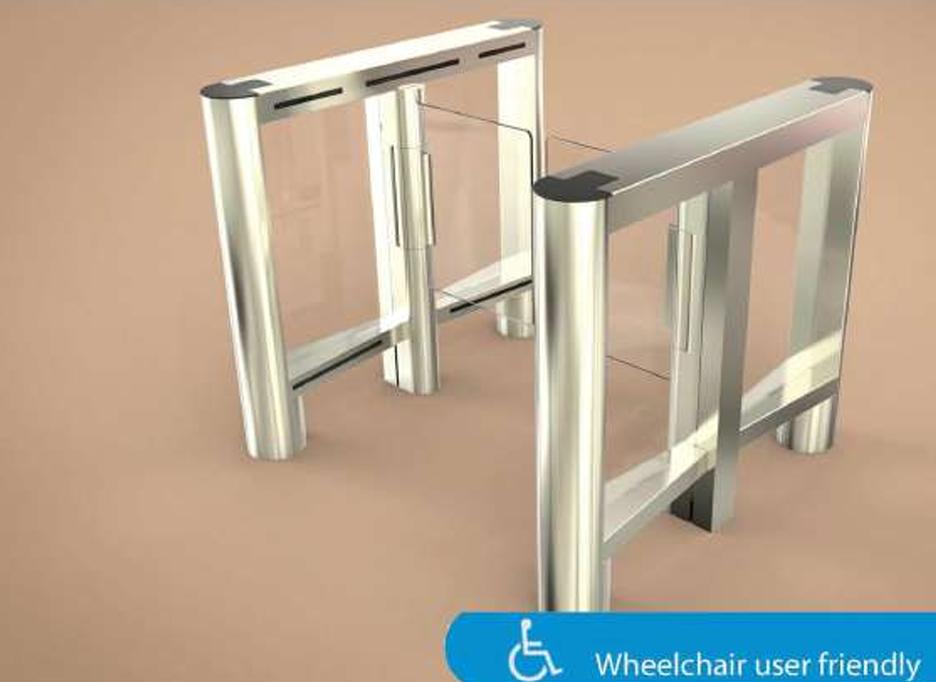

(Image caption: Wheelchair user friendly)

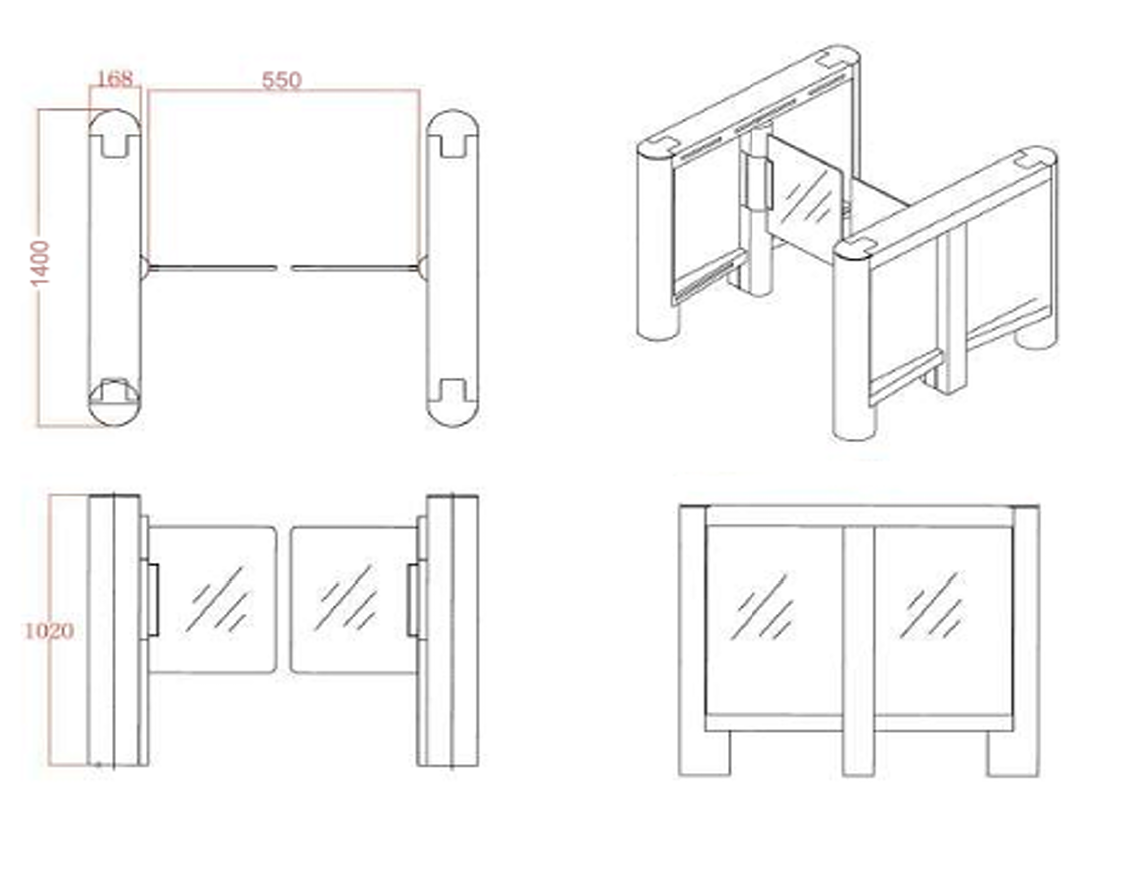

| ASW-AR-04 | ||
|---|---|---|
| Dimension (mm) | Height | 1020 |
| Length | 1400 | |
| Width | 168 | |
| Passage width | 550 / 900 (Handicap) | |
| Material | Stainless steel | SUS304, SUS316 |
| Mild steel | Powder coated | |
| Operation | Adjustable cycle time (sec) | 0.5 – 0.8 |
| Electical | Input voltage (AC) | 220V 50Hz |
| Operating Voltage | 24V 100W | |
| Options | Tail-gate sensor | |
| Addition of LED signage |
