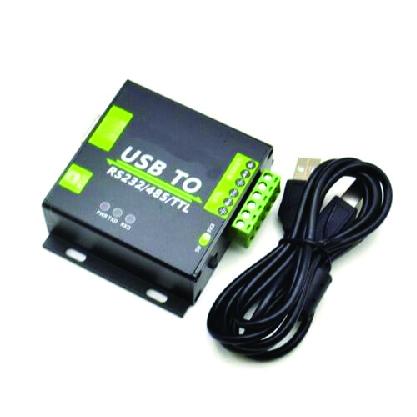

USB to RS485 RS232/485/TTL isolated converter

This is an industrial USB to RS232/485/TTL isolated converter with original FT232RL inside. It features embedded protection circuits such as power isolation, ADI magnetic isolation, and TVS diode, etc. What’s more, the USB TO RS232/485/TTL comes with an aluminium alloy enclosure, make it solid and durable to work.

The USB TO RS232/485/TTL is very easy to use, fully automatic transceiving without delay. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipment and/or applications with high communication requirement.

Code: USB TO RS485

Category: Automatic Car Barrier

Description:

Specifications

Product type: industrial optically isolated converter

Baud rate: 300-921600bps

Host port: USB Device port: RS485/RS232/TTL

USB: Operating voltage: 5V

Connector: USB-B

Protection: 200mA self-recovery fuse, isolated output

Transmission distance: ~5m

USB TO RS232, USB TO RS485, USB TO TTL (UART)
Adopt original FT232RL, fast communicating, stable and reliable, better compatibility
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other
Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable
