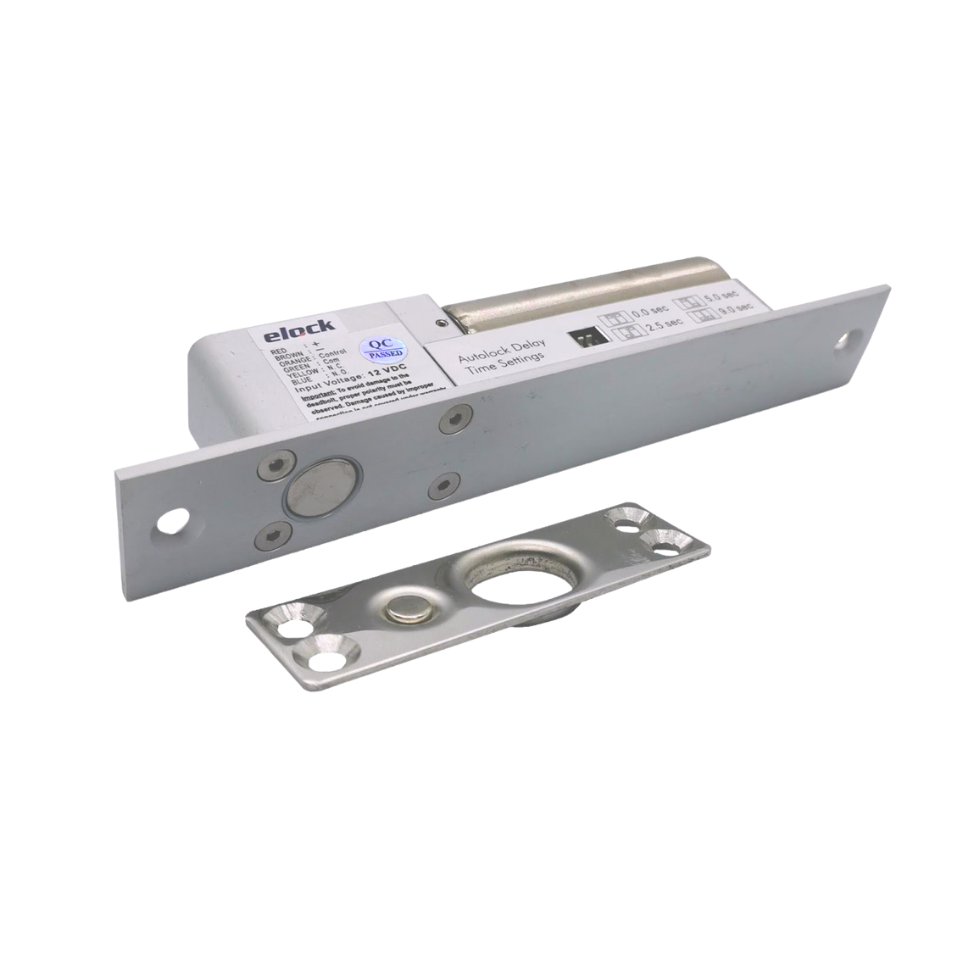

Elock B100 Electric Bolt Lock – 12V Fail-Safe Door Access

The Elock B100 Electric Bolt Lock is an electronic door locking device for compatible access control systems. It secures doors using a powered locking bolt and unlocks when power is removed. As a result, it offers fail-safe operation for suitable building access applications.

The Elock B100 uses a 12V DC power supply and features adjustable locking delays. In addition, its built-in door status contacts support monitoring through compatible access control equipment.

3S Security Solutions Specialists Inc. supplies Elock electric bolt locks in the Philippines for residential, commercial, and industrial security projects.

Key Features and Benefits

• Fail-Safe Operation: Unlocks when electrical power is removed.
• 12V DC Power: Works with a suitable regulated power supply.
• Adjustable Locking Delay: Select 0, 2.5, 5, or 9 seconds.
• Door Status Monitoring: NO/NC contacts provide door position feedback.
• Stainless Steel Bolt: Features a 15.5mm diameter bolt with a 16mm throw.
• Flexible Door Compatibility: Supports suitable wooden, aluminum, steel, and glass door installations.
• Sliding and Swing Door Applications: Works with supported single-action, double-action, and sliding doors.
• Installation Options: Supports suitable mortise or surface mounting arrangements.

How Does the Elock B100 Electric Bolt Lock Work?

First, a user presents a valid credential to a connected door access reader.

Next, the access controller checks the user’s permission. If approved, the controller can interrupt power to the lock and allow the bolt to retract.

The user can then open the door. After the door closes, the system restores the locking state according to its configuration.

In addition, the adjustable locking delay helps coordinate locking with door movement.

The built-in door sensor also provides status feedback to compatible monitoring equipment.

Therefore, installers can integrate the B100 with a wider electronic door access control system.

However, locking behavior depends on correct wiring, power supply, door alignment, and controller settings.

Common Applications

The Elock B100 Electric Bolt Lock is suitable for different controlled entrance applications.

• Corporate Offices: Secure suitable employee and visitor entrances.
• Retail Stores: Control access to staff rooms and restricted areas.
• Commercial Buildings: Support electronically controlled doors.
• Warehouses: Manage designated security entrances.
• Hotels: Control access to selected service areas.
• Private Facilities: Provide electronic locking for compatible entry points.

For glass doors, installers may need a suitable mounting bracket. Therefore, confirm the door material and dimensions before ordering.

Electric Bolt Lock vs. Magnetic Door Lock

An electric bolt lock secures the door using a physical bolt. In contrast, an electromagnetic lock holds a door using magnetic force.

Both types can form part of an electronic access control system. However, their mounting methods, alignment requirements, and door compatibility differ.

The B100 uses fail-safe operation. Therefore, it unlocks when power is removed.

Installers should confirm the correct lock type based on door movement, security needs, and approved emergency exit requirements.

Compatible Door Access Control Equipment

The Elock B100 works with suitable door access controllers, power supplies, and release devices.

For example, installers can combine the lock with a compatible RFID reader, biometric reader, exit button, and door access controller.

In addition, the door status contacts can provide monitoring feedback when supported by the controller.

Explore our Door Locks & Accessories for related locking components.

You can also browse our Push to Exit Buttons and Security Access Control products.

Elock B100 Electric Bolt Lock Supplier in the Philippines

3S Security Solutions Specialists Inc. supplies Elock electronic door locks and security components nationwide.

We support contractors, installers, resellers, and security system integrators. Moreover, our team assists with product selection, technical information, and project quotations.

For manufacturer specifications, visit the official Elock B100 product page.

Need an Elock B100 Electric Bolt Lock? Request a quotation from 3S Security PH.

Frequently Asked Questions

What is the Elock B100 Electric Bolt Lock?

The Elock B100 is a 12V DC electronic bolt lock for compatible access control systems. It uses a powered bolt to secure suitable doors.

Is the Elock B100 fail-safe or fail-secure?

The B100 is fail-safe. It requires power to maintain its locked state and unlocks when power is removed.

Can the B100 work with sliding and swinging doors?

Yes. The manufacturer identifies sliding, single-action, and double-action door applications. However, correct mounting and door alignment are essential.

Can the Elock B100 be installed on glass doors?

Yes, with suitable mounting hardware. Elock offers optional glass door brackets for compatible installations.

Does the B100 support adjustable locking delay?

Yes. Installers can select a delay of 0, 2.5, 5, or 9 seconds to match the door’s operating requirements.

Can the lock connect to biometric or RFID access control?

Yes. The B100 can operate with compatible controllers and electronic access readers. However, the reader and controller are separate components.

What happens during a power failure?

The lock is designed to unlock when power is removed. However, a complete emergency exit system must still meet applicable building and fire safety requirements.

Where can I buy the Elock B100 in the Philippines?

3S Security Solutions Specialists Inc. supplies Elock B100 electric bolt locks and related door access equipment. Contractors and integrators can request specifications and project quotations.
