S32 IP Access Controller

Native IP access control with edge intelligence Model: CTRL-S32/IP(2.0A)-PCB

Advanced IP controller with edge intelligence and secure communication. Features modular design for flexible deployment and direct integration with VAULT Central platform. Available in 1-door and 2-door configurations.

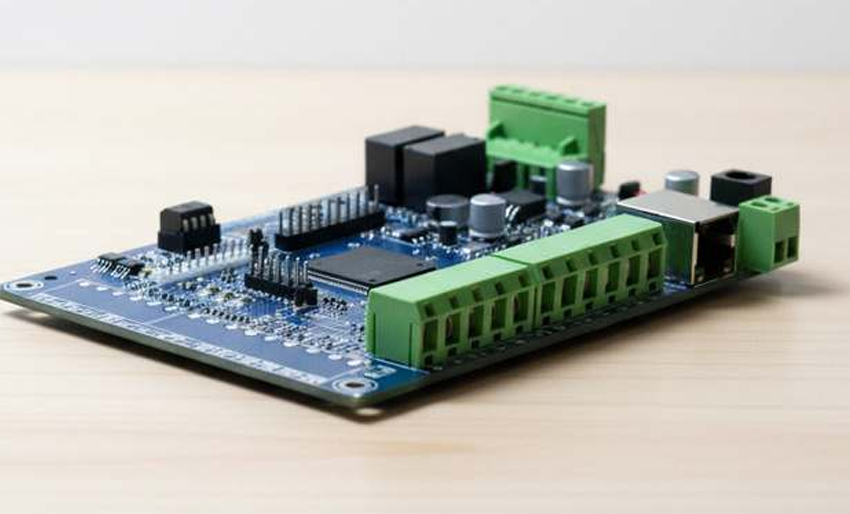

1 Door S32 IP Controller
Model: CTRL-1DR-S32/IP(2.0A)-PCB

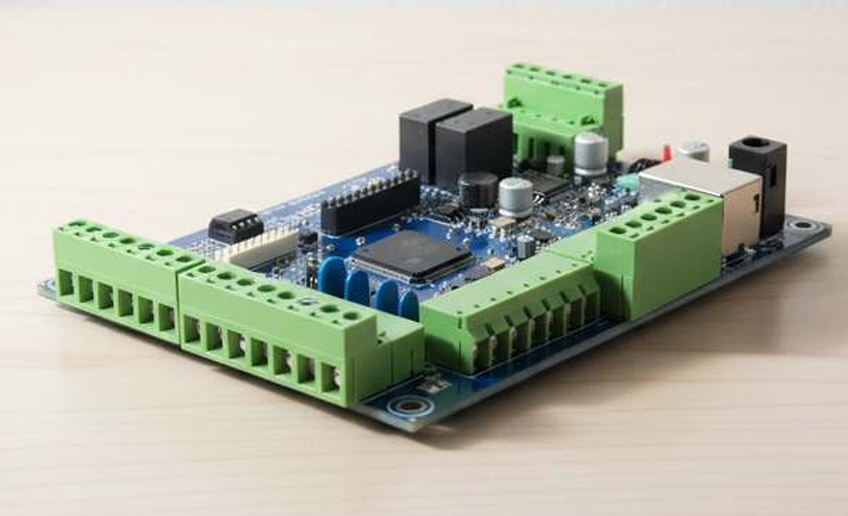

2 Doors S32 IP Controller
Model: CTRL-2DR-S32/IP(2.0A)-PCB

Unrivaled Face Recognition Performance.

• Zero-Latency Verification – Sub-second cardholder verification for up to 100,000 users. Patented algorithm.
• P2P Architecture – Door-level intelligence. Operates during server outages. No single point of failure.
• Fire Alarm Fail-Safe – Immediate door release on alarm events. Independent of server availability.
• Global Anti-Passback – Prevents credential sharing across all doors.
• High-Speed Polling – Real-time transaction processing for high-volume environments.

Advanced Security & Anti-Spoofing.

• End-to-End Encrypted Communication – End to-end protection with AES-256/OSDP v2 support (Optional).
• Industrial-Grade Protection – 15KVA surge protection, integrated power supply.
• Full Audit Trail – Stores up to 40,000 events, expandable to 200,000

Easy to Deploy.

• Uses Existing Infrastructure – Leverages your current network for cost-efficient installation.
• Flexible Configurations – Single or double door setups with up to 4 readers.
• Built-in Web Server.

System
Access Control: 1 in / 1 out (single door) or 2 in / 2 out (double door)
Readers: 1 in / 1 out (single door) or 2 in / 2 out (double door)
Reader Technology: Standard Wiegand 26/34 format, OSDP V2 (Optional)
Users: Up to 100,000, upgradeable to 250,000
Events: Up to 40,000, upgradeable to 200,000
Input Functionality: Fire alarm, exit push button, door contact, tamper
Security Encryption: AES-256 (Optional)
Controller Redundancy: Supports 2 destination IP addresses

Communication
Network Interface: RJ45 Ethernet, 10/100 Base-T
Controller Speed: 10/100 Mbps
Network Protocols: TCP/IP, ARP, DHCP

Processing
MCU: 32-bit @ 168MHz
Memory: 1 MB EEPROM, 16 MB Flash

Electrical
Power Requirement: 13.6 VDC, 3A
Battery Backup: 12 VDC, 7AH (onboard charger)

Mechanical
Dimension: 150 (L) x 100 (W) x 15.5 (H) mm (PCB only)
Weight: 25g (PCB only)

Environmental
Operating Temperature: 0⁰C ~ 55⁰C / 32⁰ ~ 165⁰F (subject to battery specification)
Humidity: 0 ~ 85% Humidity (relative non-condensing)

Regulatory
Certifications: CE, RoHS
