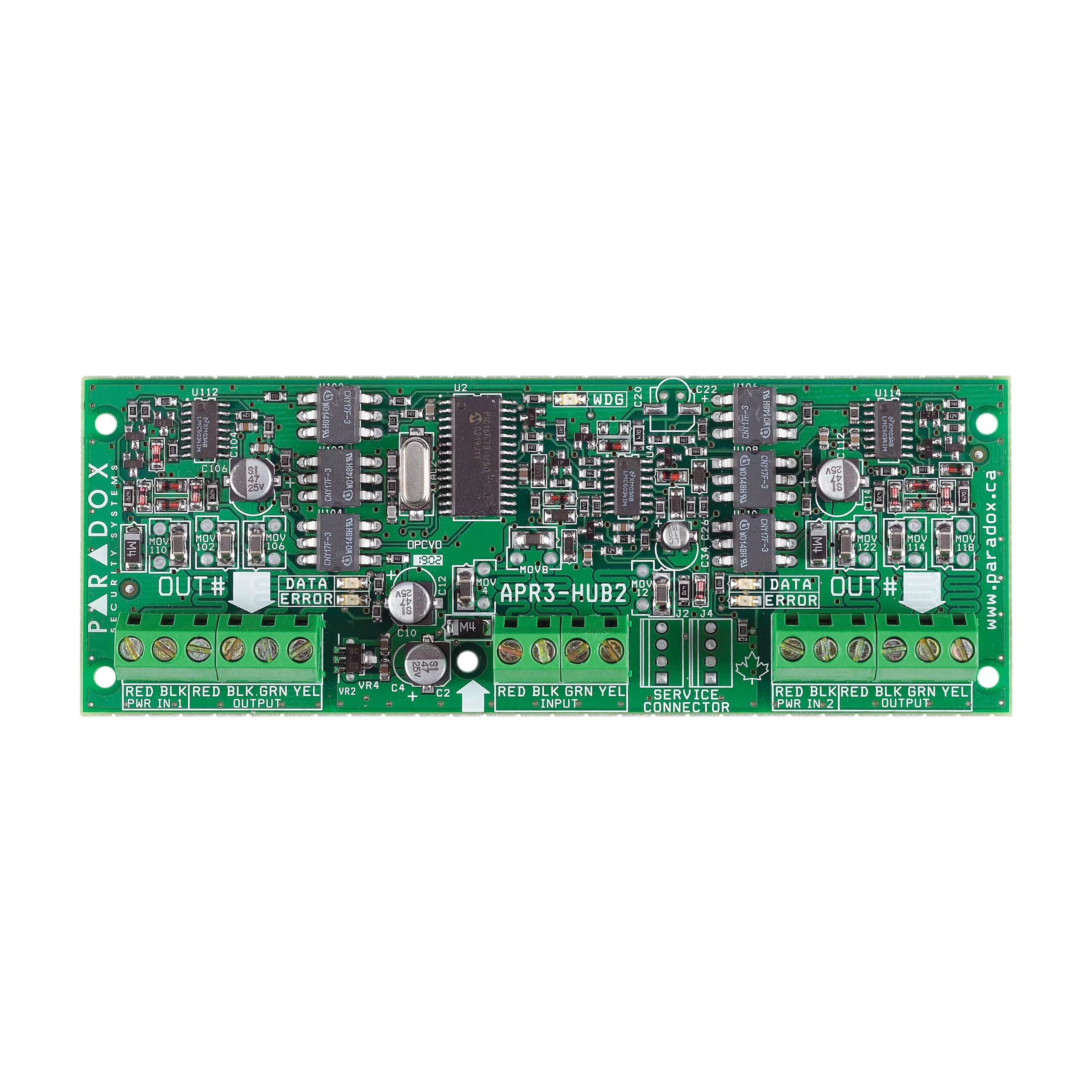

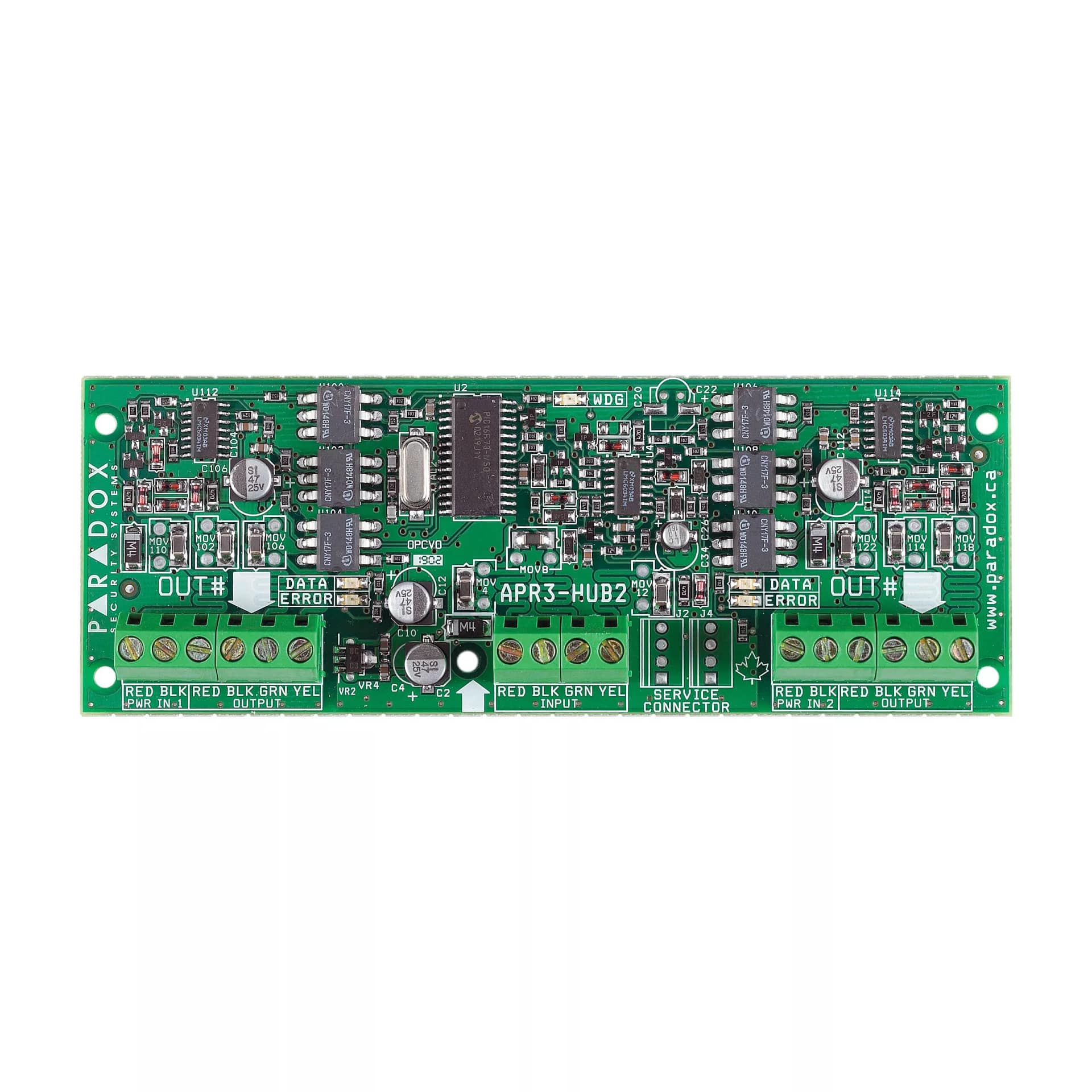

Paradox HUB2 Hub and Bus Isolator

The APR3-HUB2 is a non-addressable module that extends and divides the control panel’s bus into two completely isolated bus outputs (two for each connected APR3-HUB2). It extends the com bus/communication bus by regenerating the signal between the control panel and its modules. Should one bus output experience trouble or tampering, the other will remain unaffected. The hub monitors the signal between the control panel and modules on each output. If the hub detects a loss of signal integrity it will cut off the troubled output until proper communication is reestablished.

HUB2 HUB and BUS isolator; Splits the data line into two independent outputs; Use when the data line between expansion modules exceeds 600m (depending on cable diameter); The data line can be routed up to 900m from either output.

HUB2 is compatible with:

• Spectra SP panels (including SP4000, SP5500, SP6000, SP7000)
• Magellan panels (including MG5050, MG5000)
• Digiplex DGP-848 and DGP-NE96
• Digiplex EVO panels (including EVO48 and EVO192)

Features

• Divide the bus into two completely isolated outputs (if one output fails, the other will continue to function)
• One input port, 2 completely isolated output ports
• Each output port provides communications up to 900m (3000ft)
• Includex 8 x 10 x 3in metal box (not shown)
